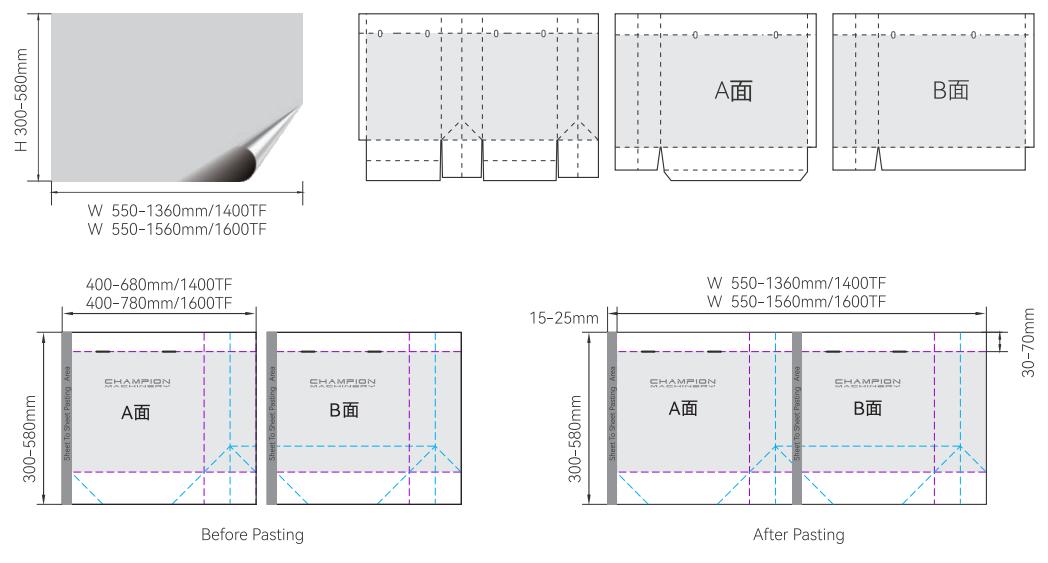

Paper Size

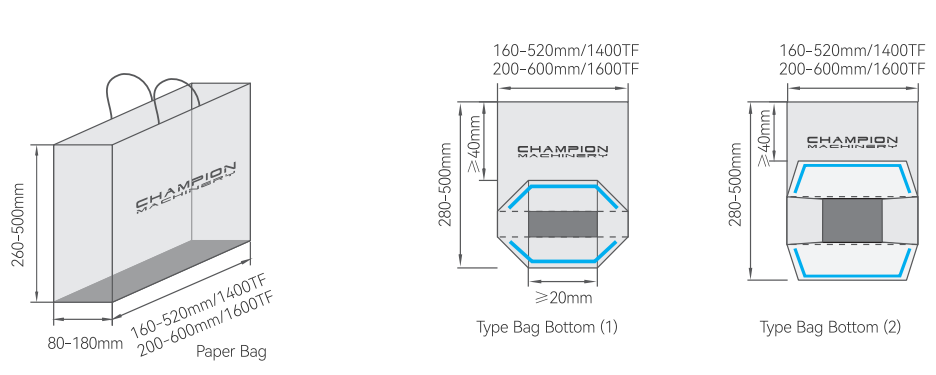

Bag Size

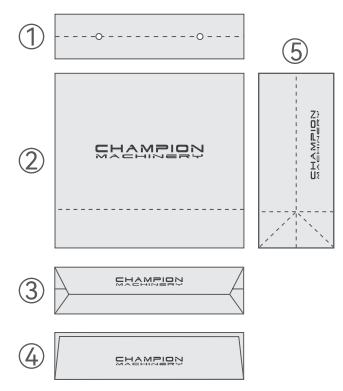

①Postion above top folding line
②Postion below top folding line
③Top cardboard pasting 4 pcs same size
④Top cardboard pasting 4 pcs different size
⑤Paper bag body
Machine Description
This automatic double-stitch paper bag machine, combining two semi-automatic modular lines (A+B), combines flexibility, efficiency, and a high degree of automation. Designed to meet the diverse production requirements of double-stitch paper bags, this machine demonstrates strong market adaptability through its wide range of applications, including luxury goods, apparel, gifts, and shopping paper bags.
By utilizing double-stitch forming technology, high-speed, high-precision production processes, and an intelligent control system, the machine reduces costs, improves efficiency, and optimizes quality. Its modular design allows for flexible adaptation to diverse production needs. Its environmentally friendly features align with current trends in green production, making it a leading upgrade option for traditional paper bag production equipment.
Machine Features
1. Flexible design ensures you running either single-sheet or 2-sheet-pasting production in 1 machine line, with separations of the line or in full line.
2. High precision, high production, Low requirement in operators’ experience and low wastage, are well-known features of machines from Champion Machinery.
3. It is widely applicable due to high productivity and easy adjustment. It can be applied to the production of small, medium and large or customized two-sheet paper bags in small, medium or large quantities, and to production of high-level two-sheet paper bags with high requirements for technology, precision, appearance and quality, and two-sheet / sheet-feeding paper bags with complex structures; and can also be applied to the mass production of ordinary sheet-feeding and two-sheet paper bags;
4. It can also be applied to the mass production of ordinary sheet-feeding and two-sheet paper bags;
5. Some time consuming setting of the machines are designed with computerized control, and size changing time is greatly decreased, and servo motors join in production motions, also makes machines perform fast and accurately. Setting of the machine thus is much easier.
6. Fresh operator friendly design and programming, ensure you run production stably, fast in size changing, and confident in investing in your business.
| Model | CM2SP-1400TF CMBF-420A/520A/600A+CMBS-600AC | CM2SP-1400TF CMBF-420A/520A/600A+CMBS-600AC |
| Sheet Paper Size | ||
| Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Two Sheet Paper Size | ||
| Before Pasting Sheet Paper Width 1 | 400-680mm | 400-780mm |
| Before Pasting Sheet Paper Width 2 | 400-680mm | 400-780mm |
| After Pasted W1+w2 Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Paper Bag Tube Size | ||
| Paper Bag Top Folder Depth | 30-70mm | 30-70mm |
| Paper Bag Tube Width | 160-520mm | 200-600mm |
| Paper Bag Tube Length | 260-550mm | 260-550mm |
| Paper Bag Gusset | 80-180mm | 80-180mm |
| Sheet Paper Glue Side | 15-25mm | 15-25mm |
| Suitable Paper Material & Glue & Handle | ||
| Kraft Paper | 120-350gsm | 120-350gsm |
| Coat Paper / Laminated | 157-250gsm | 157-250gsm |
| White Board Paper | 157-300gsm | 157-300gsm |
| Grey Board Paper | 157-300gsm | 157-300gsm |
| Glue | Hot melt glue option water base glue | Hot melt glue option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag |
| Running | ||
| Speed | 0-60 pcs/min | 0-60 pcs/min |
| Installation | ||
| Total Power Supply | 39KW | 39KW |
| Compressed Air / Capacity | 6bar | 6bar |
| Air Tank Capacity | 15m³/h | 15m³/h |

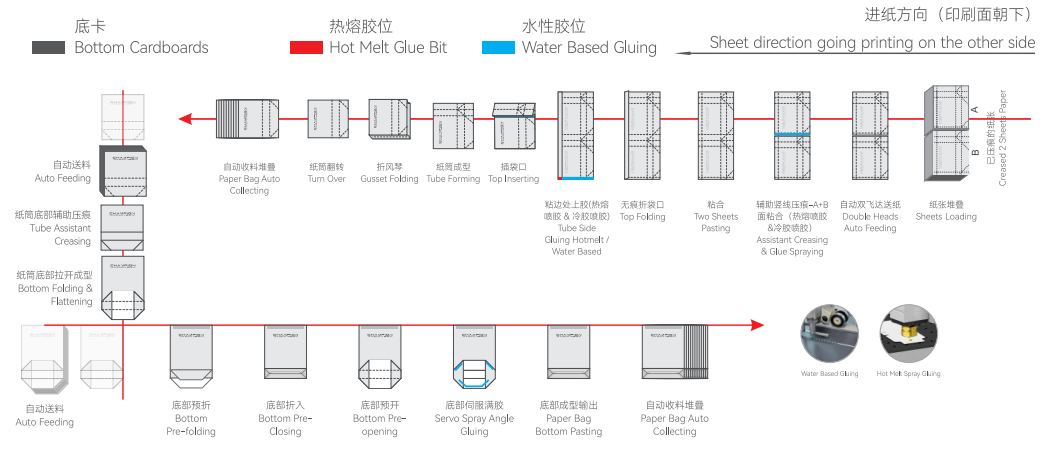

Group A: Paper Bag Tube Forming
1)Sheets Loading
2)Double Heads Auto Feeding
3)Assistant Creasing & Glue Spraying
4)Two Sheets Pasting
5)Top Folding
6)Tube Side Gluing Hotmelt / Water Based
7)Top Inserting
8)Tube Forming
9)Gusset Folding
10)Turn Over
11)Paper Bag Auto Collecting
Group B: Paper Bag Bottom Folding + Bottom Gluing
12)Auto Feeding
13)Tube Assistant Creasing
14)Bottom Folding & Flattening
15)Bottom Pre-folding
16)Bottom Pre-Closing
17)Bottom Pre-opening
18)Servo Spray Angle Gluing
19)Paper Bag Bottom Pasting
20)Paper Bag Auto Collecting
