Machine Description

The digital paper bag printing machine is a plate-free inkjet printing system designed specifically for packaging products such as paper bags and tote bags. Using CMYK four-color inkjet technology, it can directly print electronic files (such as designs, text, and variable data) at high speed onto absorbent surfaces such as kraft paper, greaseproof paper, and biodegradable materials. Supporting single- or double-sided printing, it is suitable for small-batch customization, personalized logos, and variable data printing, significantly reducing the minimum order requirement for traditional printing.

Machine Features

1. Adopt P.L.C control system. self-developed special motherboard, patent protection. unique in the market, good stability, self-contained image feathering function and variable data printing. support multi-task continuous printing.

2. The original ink circuit circulation technology can effectively eliminate the small air bubbles in the ink and the air in the ink circuit and continuously supply ink to the print head with a stable and balanced negative pressure value.

3. The printer has automatic cleaning, automatic moisturizing, and the design life of the nozzle is more than 1.5 years. The printer is designed with a print head protection device to prevent the print head from being scratched and damaged by materials.

4. The self-developed feeding belt (patented) has a high-precision automatic deviation correction function and a reasonable layout of suction holes to ensure that the printing material is more stable during transportation.

5. Advanced color management engine and color processing tools, manage colors with friendly and casy-to-use color control. advanced dithering mode for phot-realistic output, fully customized print setings, enhance printing effect. CC profiles for various media and print modes, suporting use of third-party RIP software.

6. 3.5L large-capacity ink 6supply system, equipped with environmentally friendly pigment ink and dye ink. Imported high-quality water based raw materials are used to make the printing effect more vivid and the color saturation higher. At the same time, no VOC waste gas is generated, and there is no need to worry about environmental protection issues"

7.The printer is equipped with a sensitive automatic calibration system, an automatic printing positioning system, and equipped with multiple sensors to accurately position and print.

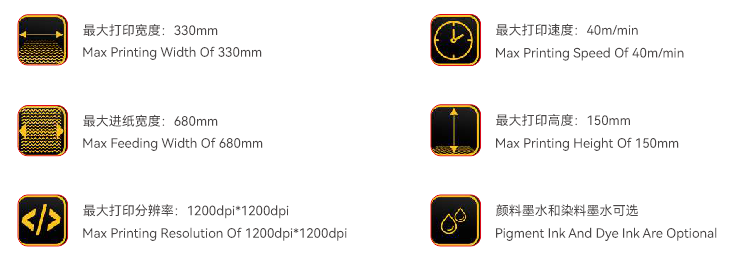

8.Fully digital single pass printer, it can print when it is turned on, the printing cost is low, the speed is fast, the production efficiency is high, no need for plate making, and it can be printed by importing pictures. The max printing length of a single image is 20m. The max printing accuracy is 600dpi*1200dpi and the fastest printing speed is 50m/min

9.The professional automatic 9 feeder has fast, stable and uniform feeding characteristics, which improves printing efficiency and saves the cost of manual feeding. The structure of the 1 printer is all steel  integrated, strong and durable. The fuselage is designed with multiple maintenance windows for important components, which is convenient for mai

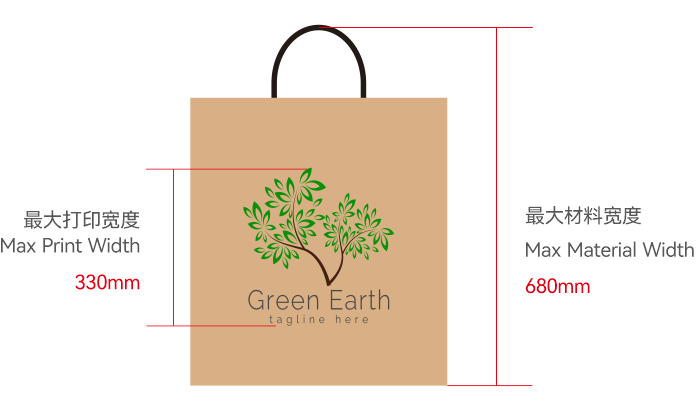

Bag Size

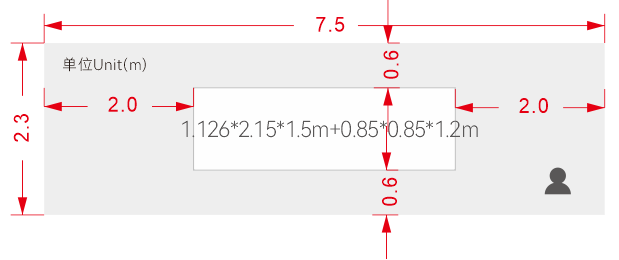

Machine Floor Plan
