Machine Description
This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
Machine Features
1、Food bag：leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
2、Gift bag：candy ,tea wine etc.
3、Take away bag：coffee,tea bag
| Model | CMFB-220 |
| Paper bag part | |

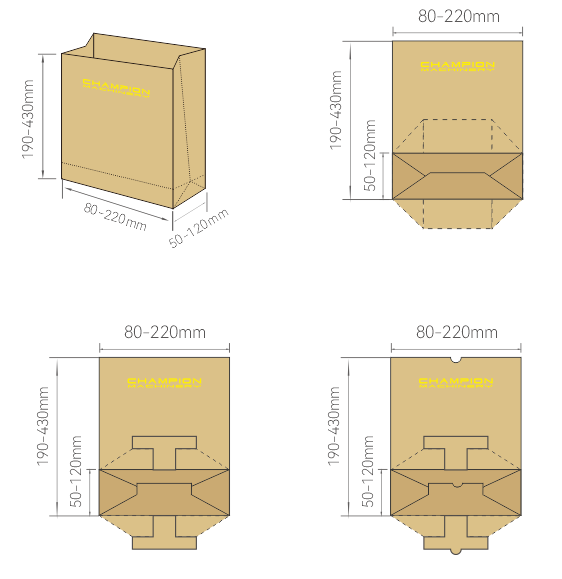

| Paper bag length (Cutting length) | 190-430mm |
| Paper bag width | 80-220mm |
| Paper bag bottom width | 50-120mm |
| Paper thickness | 45-150g/m² |
| Paper roll width | 280-710mm |
| Roll paper diameter | 1300mm |
| Running speed | |
| Machine MAX Speed | 280pcs/min |
| Paper bag speed | 180-220pcs/min |
| Specification | |
| Machine Power | 380V 3 Phase 4 line 15kw |
| Machine weight | 5600kg |
| Machine Dimensions | 8600×2600×1900mm |

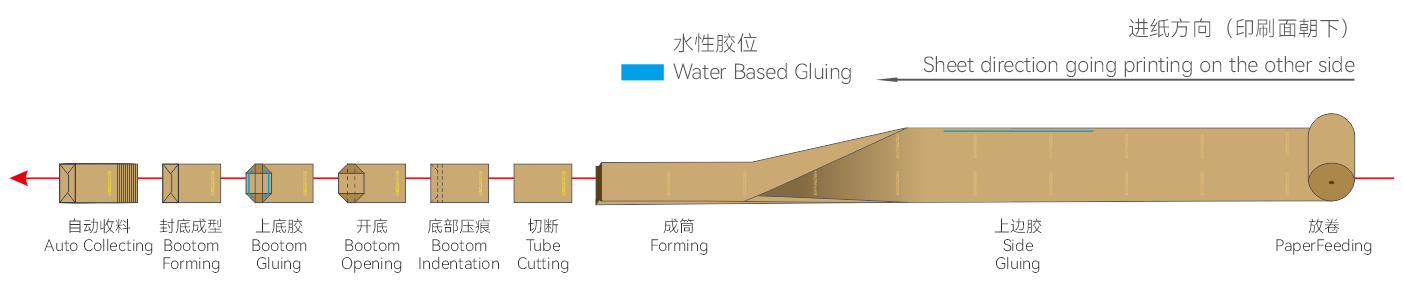

1)PaperFeeding
2)Perforation
3)Side Gluing
4)Tube Forming
5)Tube Cutting
6)Bootom Indentation
7)Bootom Opening
8)Bootom Gluing
9)Bootom Forming
10)Automatic Collection
