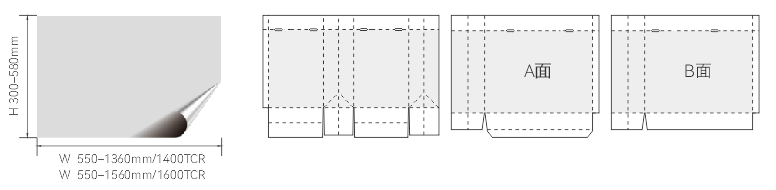

Paper Size

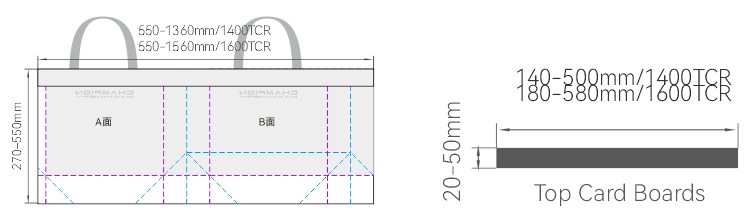

Bag Size
①Postion above top folding line
②Postion below top folding line
③Top cardboard pasting 4 pcs same size
④Top cardboard pasting 4 pcs different size

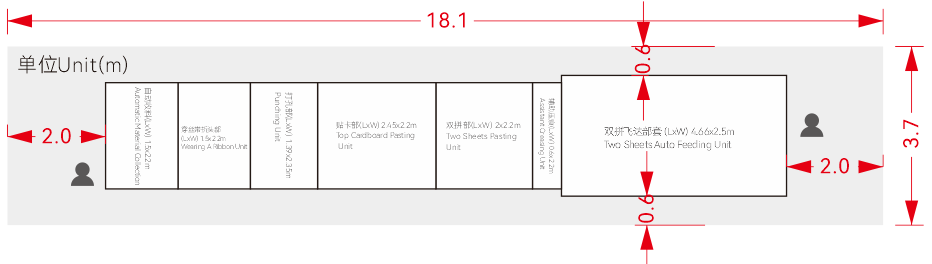

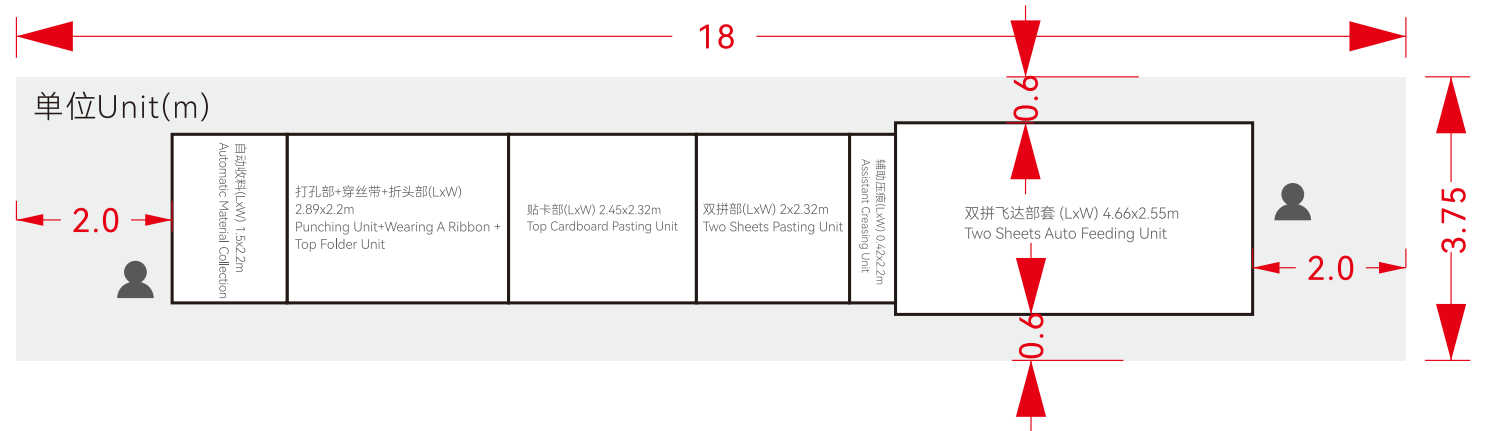

Machine Floor Plan
Machine Description
To address the inefficiencies and high quality fluctuations associated with manual ribbon threading, we have developed a newly developed double-joint-head card threading and folding machine. This machine integrates three core technological advantages: fully automated intelligent control, multi-functional integration, and millimeter-level high-precision lamination. This creates a comprehensive intelligent production system, encompassing everything from raw material processing to finished product output.
This machine significantly improves production efficiency compared to traditional processes. Its automatic positioning system and adaptive tension control technology maintain a stable product yield of over 95%. Its modular design allows for rapid switching between different paper bag sizes, perfectly meeting the personalized customization needs of luxury packaging and high-end retail. This can help businesses reduce costs and increase efficiency, enabling a leap from "manufacturing" to "intelligent manufacturing."
| Modle | CM2SP-1400TCR | CM2SP-1600TCR |
| Sheet Paper Size | ||
| Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |

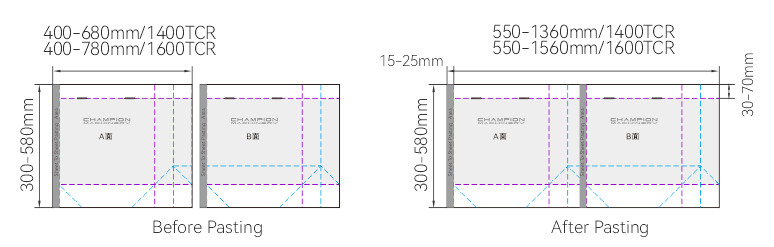

| Two Sheet Paper Size | ||
| Before pasting Sheet Paper Width 1 | 400-680mm/1400 | 400-780mm/1600 |
| Before pasting Sheet Paper Width 2 | 400-680mm/1400 | 400-780mm/1600 |
| After pasted W1+W2 Sheet Paper Width | 550-1360mm/1400 | 550-1560mm/1600 |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Suitable Paper Material & Glue & Handle | ||
| Kraft Paper | 120-350gsm | 120-350gsm |
| Coat Paper/Laminated | 157-250gsm | 157-250gsm |
| White Board Paper | 157-300gsm | 157-300gsm |
| Grey Board Paper | 157-300gsm | 157-300gsm |
| Glue | Hot melt glue option/water base glue | Hot melt glue option/water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle; Ribbon handles with top cardboard pasting glue fix of luxury paper bag | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle; Ribbon handles with top cardboard pasting glue fix of luxury paper bag |
| Top Cardboards | ||
| Top Cardboards Width | 25-65mm | 25-65mm |
| Top Cardboards Length | 140-500mm/1400 | 180-580mm |
| Top Cardboards Thickness | 200-400gsm 4pcs / 200-600gsm 2 pcs | 200-400gsm 4pcs / 200-600gsm 2 pcs |
| Running | ||
| Speed | 0-30 pcs/min | 0-30 pcs/min |
| Installation | ||
| Total Power Supply | 32KW | 32KW |
| Compressed Air / Capacity | 6bar | 6bar |
| Air Tank Capacity | 15m³/h | 15m³/h |

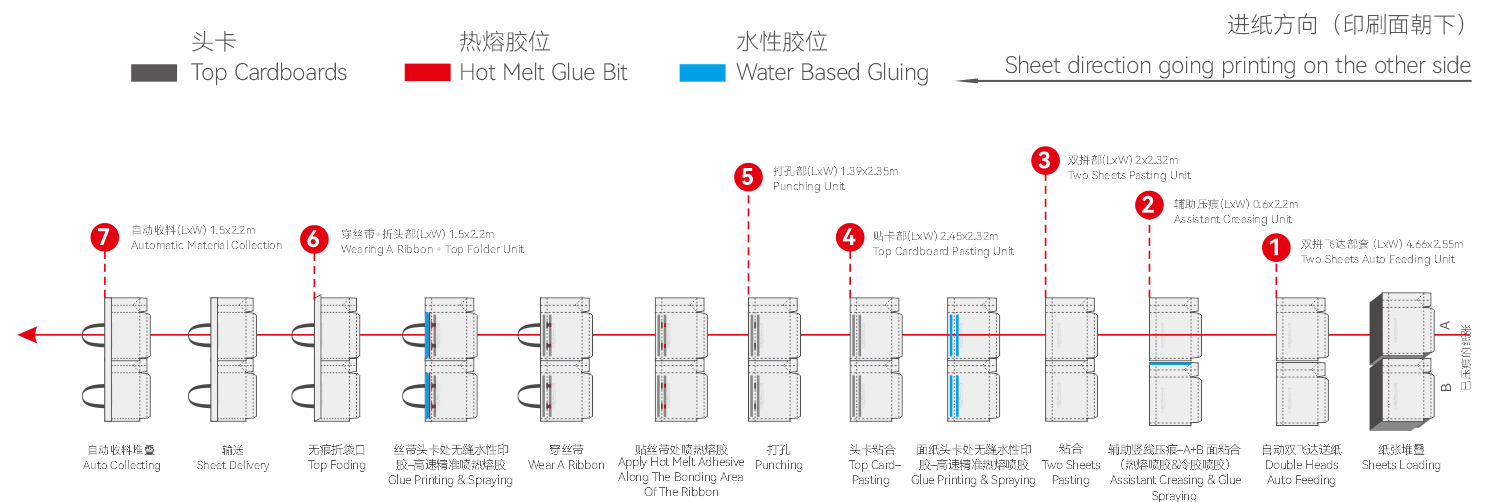

1）Sheets Loading
2）Double Heads Auto Feeding
3）Assistant Creasing & Glue
4）Two Sheets Pasting
5）Glue Printing & Spraying
6）Top Card-Pasting
7）Punching
8）Apply Hot Melt Adhesive Along The Bonding Area Of The Ribbon
9）Wear A Ribbon
10）Glue Printing & Spraying
11）Top Foding
12）Sheet Delivery
13）Auto Collecting
