①Postion above top folding line
②Postion below top folding line

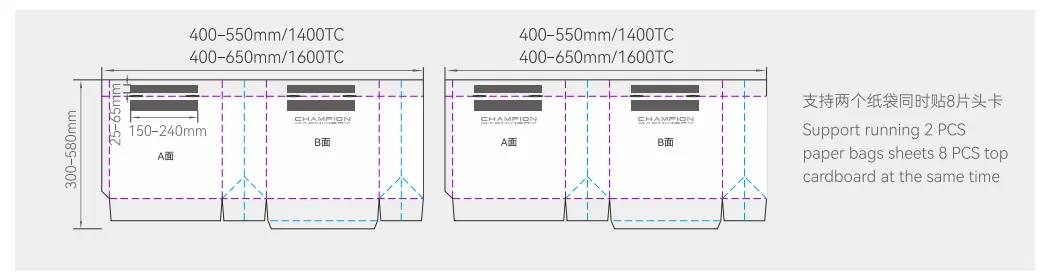

③Top cardboard pasting 4 pcs same size
④Top cardboard pasting 4 pcs different size
⑤Paper bag body
⑥ Paper bag bottom type (1)
⑦ Paper bag bottom type (2)
⑧ Paper bag gusset
| Model | CM2SP-1400TC | CM2SP-1600TC |
| Sheet Paper Size | ||
| Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |

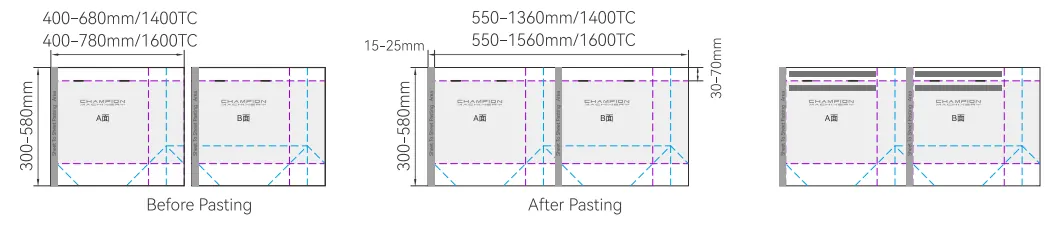

| Two Sheet Paper Size | ||
| Before pasting Sheet Paper Width 1 | 400-680mm | 400-780mm |
| Before pasting Sheet Paper Width 2 | 400-680mm | 400-780mm |
| After pasted W1+W2 sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Suitable Paper Material & Glue & Handle | ||
| Kraft Paper | 120-350gsm | 120-350gsm |
| Coat Paper / Laminated | 157-250gsm | 157-250gsm |
| White Board Paper | 157-300gsm | 157-300gsm |
| Grey Board Paper | 157-300gsm | 157-300gsm |
| Glue | Hot melt glue option water base glue | Hot melt glue option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag |
| Top Coadboards | ||
| Top Coadboards width | 25-50mm | 25-50mm |
| Top Coadboards length | 140-500mm | 180-580mm |
| Top Cardboards Thickness | 200-400gsm 4pcs | 200-600gsm 2pcs |
| Running | ||
| Speed | 0-100 pcs/min | 0-100 pcs/min |
| Voltage | 380V/220V 50/60HZ 3 phase | 380V/220V 50/60HZ 3 phase |
| Production Power | 12-13KW | 12-13KW |
| Machine Size & Weight | ||
| Size | 11.2 × 2.5 × 1.9M | 11.2 × 2.5 × 1.9M |
| Weight | 6600kg | 6600kg |
| Installation | ||
| Total Power Supply | 25KW | 25KW |
| Compressed Air / Capacity | 6bar | 6bar |
| Air Tank Capacity | 15m³/h | 15m³/h |

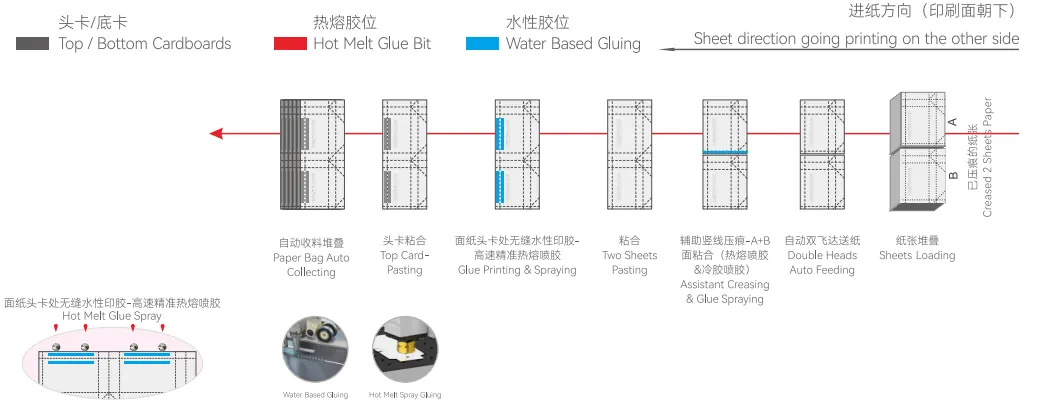

Sheets Loading → Double HeadsAuto Feeding → Assistant Creasing & Glue Spraying → Two Sheets Aligning → Glue Printing & Spraying → Top Card-Pasting → Paper Bag AutoCollecting
This machine is designed for common shopping bag and luxury bag materials such as kraft paper, coated paper, laminated paper, white board paper, and related paperboard materials. Exact ranges depend on the selected model and production configuration.
It is suitable for paper bags used in luxury packaging, shopping, gifts, apparel, jewelry, cosmetics, food packaging, and other commercial packaging applications.
Yes. Buyers should share target paper material, GSM, bag size, handle type, glue requirements, and sample bags so Champion can confirm the best machine configuration and arrange production testing.
Champion provides technical consultation, installation guidance, operator training, spare parts support, and remote support for paper bag machine buyers.
