Manul Feeder 1400/1600 Tube Maker is a Paper bag ribbon insertion and rope threading machine designed for luxury paper bags, gift bags and shopping bags with ribbon or rope threading.
To configure Manul Feeder 1400/1600 Tube Maker accurately, buyers should provide bag hole distance, ribbon material, rope diameter, threading style and target output. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag ribbon insertion and rope threading machine |
|---|---|
| Model / product name | Manul Feeder 1400/1600 Tube Maker - Manual Feeding Paper Bag Tubing Machine with Ribbon Threading |
| Suitable bag applications | luxury paper bags, gift bags and shopping bags with ribbon or rope threading |
| Main production process | bag positioning, hole alignment, ribbon or rope feeding, threading and collection |
| Buyer confirmation points | bag hole distance, ribbon material, rope diameter, threading style and target output |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
Manul Feeder 1400/1600 Tube Maker | Ribbon threading / top card luxury bag lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.

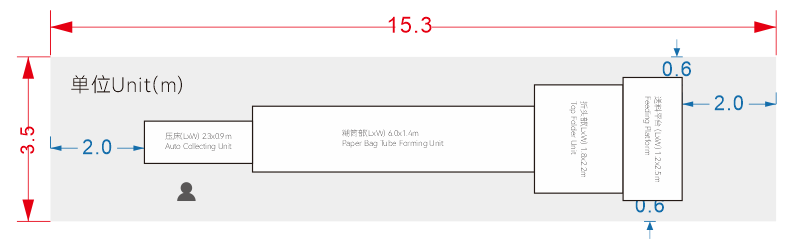

Machine Floor Plan
Machine Description
1. The equipment uses manual paper feeding, offering flexibility and convenience.
2. The intelligent control system supports variable frequency speed regulation and automatic counting, ensuring high accuracy.
3. It is compatible with various materials such as kraft paper, white cardboard, and paper-yarn composite bags.
4. It utilizes a dual-use water-based and hot-glue system, replacing traditional yellow glue to reduce VOC emissions.
5. This equipment is ideal for achieving cost reduction, efficiency improvement, and quality upgrades in luxury packaging, boutique retail, and other sectors.
Machine Features
1. Forming Technology: Utilizing proprietary forming technology, this equipment ensures precise paper bag dimensions and excellent shaping.
2. Efficient Automation: This equipment is specifically designed for semi-automatic paper bag tube forming with pre-inserted ribbons or handles. It requires manual feeding of materials, after which the tube-forming process—including automatic tube forming, and pleating—is completed in a single pass. This design addresses the issues of inconsistent quality and low efficiency in manual tube forming.
3. Intelligent Control: The main control circuit utilizes an imported single-chip microcomputer, a human-machine interface, and variable frequency control. Parameter setting is quick and easy, and operation is centralized and intuitive, achieving fully user-friendly, fully automatic operation. Digital fault self-diagnosis provides clear fault diagnosis at a glance, facilitating quick and easy maintenance and adjustments.
4. Reduced Labor Costs: With a high degree of automation, the entire production process can be completed by only one person, eliminating 3-5 labor costs and intermediate handling steps. Easy to learn, it saves labor costs and offers a more user-friendly experience.
5. Durability and Easy Maintenance: The dual-frequency design features a simple mechanical structure, minimal wear, easy maintenance, and a long service life.
6. Key Components: The entire machine utilizes renowned brand components such as the German Rexroth dual-servo control system, Siemens PLC, and frequency converter, ensuring stable performance, high efficiency, and durability.
7. Environmentally Friendly Materials: The bonding process primarily utilizes environmentally friendly water-based and hot-melt adhesives, meeting food packaging safety standards. The machine structure is easy to clean and maintain, reducing waste generation.
8. Material Compatibility: Supports a variety of paper materials (120-350g/m2), including kraft paper, white cardboard, and coated paper.
| Model | 1400 | 1600 | |
| Sheet Paper Size | Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-550mm | |
| Paper Bag Tube Size | Paper Bag Top Folder Depth | 30-70mm | 30-70mm |
| Paper Bag Tube Width | 160-500mm | 200-600mm | |
| Paper Bag Tube Length | 270-550mm | 270-550mm | |
| Paper Bag Gusset | 70-180mm | 70-180mm | |
| Sheet Paper Glue Side | 15-25mm | 15-25mm | |
| Suitable Paper Material & Glue & Handle | Kraft Paper | 120-350gsm | 120-350gsm |
| Coat Paper/Laminated | 157-250gsm | 157-250gsm | |
| White Board Paper | 157-300gsm | 157-300gsm | |
| Grey Board Paper | 157-300gsm | 157-300gsm | |
| Glue | Hot melt glue option/water base glue | Hot melt glue option/water base glue | |
| Running | Speed | 0-50 pcs/min | 0-50 pcs/min |
| Voltage | 380V/220V 50/60HZ 3 phase | 380V/220V 50/60HZ 3 phase | |
| Production Power | 6-7.5KW | 6-7.5KW | |
| Machine Size & Weight | Size | 11.3×2×1.1M | 11.3×2×1.1M |
| Weight | 2000kg | 2000kg | |
| Installation | Total Power Supply | 15KW | 15KW |
| Compressed Air / Capacity | 6bar | 6bar | |
| Air Tank Capacity | 15m³/h | 15m³/h |

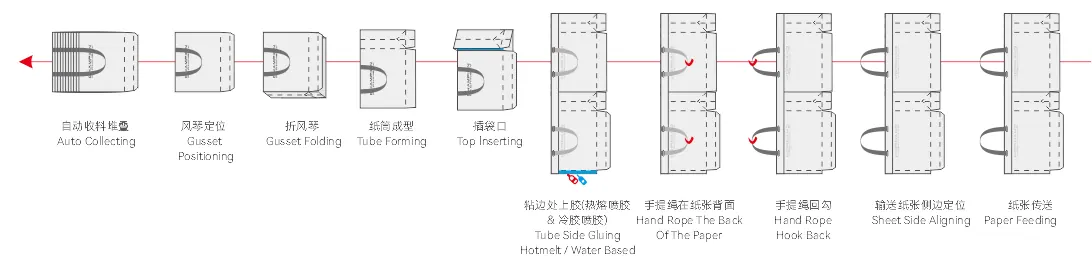

1)Paper Feeding
2)Sheet Side Aligning
3)Hand Rope Hook Back
4)Hand Rope The Back Of The Paper
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Gusset Folding
9)Gusset Positioning
10)Auto Collecting
Manul Feeder 1400/1600 Tube Maker: Send the bag width and height, hole diameter and spacing, ribbon or rope material, diameter or width, threading pattern and required hourly output.
Manul Feeder 1400/1600 Tube Maker: It depends on material stiffness, diameter, end shape and threading pattern. CHAMPION should test representative samples before confirming a multi-material configuration.
