CMTF-1200AT /1400AT is a Sheet fed luxury paper bag production line designed for luxury shopping bags, boutique bags, gift bags and premium packaging bags.
To configure CMTF-1200AT /1400AT accurately, buyers should provide sheet size, top card, bottom card, ribbon or handle process and finished bag sample. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Sheet fed luxury paper bag production line |
|---|---|
| Model / product name | CMTF-1200AT /1400AT - Automatic Sheet-Fed Paper Bag Tube Forming Machine-CMTF-1200AT /1400AT |
| Suitable bag applications | luxury shopping bags, boutique bags, gift bags and premium packaging bags |
| Main production process | sheet feeding, tube forming, top card inserting, bottom card placing and precision pasting |
| Buyer confirmation points | sheet size, top card, bottom card, ribbon or handle process and finished bag sample |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMTF-1200AT /1400AT | Sheet-fed automatic luxury paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.

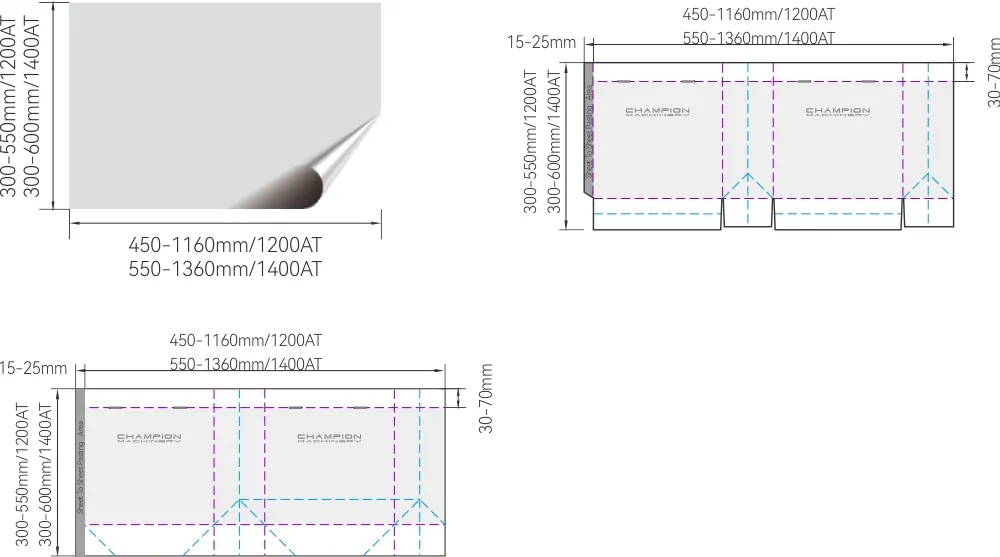

Paper Size
Bag Size
①Postion above top folding line
②Postion below top folding line
③Top cardboard pasting 4 pcs same size
④Top cardboard pasting 4 pcs different size
⑤Paper bag body
Machine Description
The device is an Automatic Single-sheet Paper Bag Tube Former, a highly efficient and automated production machine designed specifically to meet the manufacturing requirements of paper bag tube forming. With its wide range of applications in industries such as luxury goods, apparel, gifts, and shopping paper bags, the machine demonstrates strong market adaptability.
By incorporating high-efficiency paper bag forming technology, high-speed and high-precision manufacturing processes, and an intelligent control system, it effectively reduces production costs, enhances operational efficiency, and optimizes product quality. Its modular design concept allows for flexible adaptation to diverse production needs. Moreover, its environmentally friendly features align with the current trend of green manufacturing, making it the ideal choice for upgrading traditional paper bag production equipment.
Process Flowchart
1. Forming Technology: Utilizing proprietary forming technology, this equipment ensures precise paper bag dimensions and excellent shaping.
2. Efficient Automation: The equipment achieves fully automated paper bag tube forming, completing the entire production process from raw materials to finished tubes in a single pass. This includes automatic folding of bag tops, tube forming, and pleating with minimal human intervention.
3. Intelligent Control: The main control circuit utilizes an imported single-chip microcomputer, a human-machine interface, and variable frequency control. Parameter setting is quick and easy, and operation is centralized and intuitive, achieving fully user-friendly, fully automatic operation. Digital fault self-diagnosis provides clear fault diagnosis at a glance, facilitating quick and easy maintenance and adjustments.
4. Reduced Labor Costs: With a high degree of automation, the entire production process can be completed by only one person, eliminating 3-5 labor costs and intermediate handling steps. Easy to learn, it saves labor costs and offers a more user-friendly experience.
5. Durability and Easy Maintenance: The dual-frequency design features a simple mechanical structure, minimal wear, easy maintenance, and a long service life.
6. Key Components: The entire machine utilizes renowned brand components such as the German Rexroth dual-servo control system, Siemens PLC, and frequency converter, ensuring stable performance, high efficiency, and durability.
7. Environmentally Friendly Materials: The bonding process primarily utilizes environmentally friendly water-based and hot-melt adhesives, meeting food packaging safety standards. The machine structure is easy to clean and maintain, reducing waste generation.
8. Material Compatibility: Supports a variety of paper materials (120-350g/m²), including kraft paper, white cardboard, and coated paper.
| Model | 1200AT | 1400AT | |
| Sheet Paper Size | Sheet Paper Width | 450-1160mm | 550-1360mm |
| Sheet Paper Length | 300-550mm | 300-400mm | |
| Paper Bag Tube Size | Paper Bag Top Folder Depth | 30-70mm | 30-70mm |
| Paper Bag Tube Width | 160-420mm | 160-520mm | |
| Paper Bag Tube Length | 240-550mm | 240-550mm | |
| Paper Bag Gusset | 70-180mm | 70-180mm | |
| Sheet Paper Glue Side | 15-25mm | 15-25mm | |
| Suitable Paper Material & Glue & Handle | Kraft Paper | 120-350gsm | 120-350gsm |
| Cost Paper / Laminated | 157-250gsm | 157-250gsm | |
| White Board Paper | 157-300gsm | 157-300gsm | |
| Grey Board Paper | 157-300gsm | 157-300gsm | |
| Glue | Hot melt glue option water base glue | Hot melt glue option water base glue | |
| Handle | Flat paper handle, twisted paper handle, lipping with rope or ribbon handle, cotton ribbons with top cardboard pressing glue in luxury paper bag | Flat paper handle, twisted paper handle, lipping with rope or ribbon handle, cotton ribbons with top cardboard pressing glue in luxury paper bag | |
| Running | Speed | 0-70 pcs/min | 0-70 pcs/min |
| Voltage | 380/220V 50/60HZ 3 phase | 380/220V 50/60HZ 3 phase | |
| Production Power | 15KW | 15KW | |
| Machine Size & Weight | Size | 16 × 2.5 × 1.9M | 16 × 2.5 × 1.9M |
| Weight | 11000kg | 11000kg | |
| Installation | Total Power Supply | 35KW | 35KW |
| Compressed Air / Capacity | 6bar | 6bar | |
| Air Tank Capacity | 15m³/h | 15m³/h |

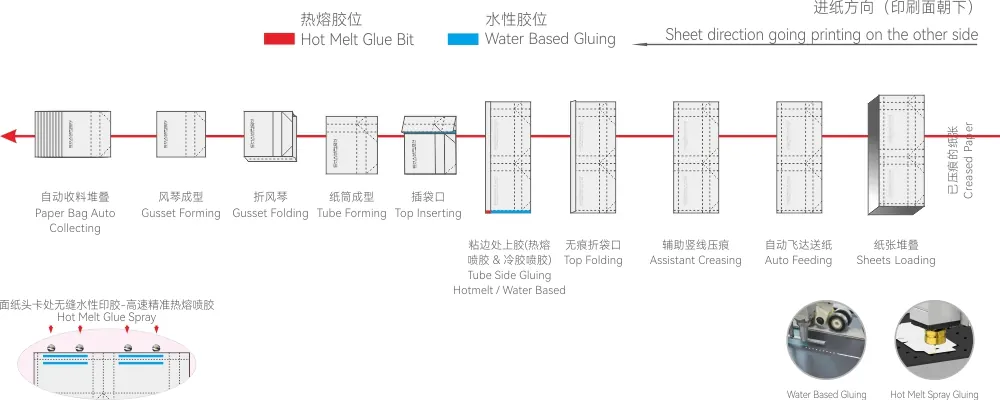

Process Flowchart
1)Sheets Loading
2)Auto Feeding
3)Assistant Creasing
4)Top Folding
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Gusset Folding
9)Gusset Forming
10)Paper Bag Auto Collecting
CMTF-1200AT /1400AT: Provide the flat sheet and finished bag dimensions, paper GSM, printing reference, top and bottom card sizes, handle or ribbon design, glue requirements and target output.
CMTF-1200AT /1400AT: Sheet-fed production is suitable for premium printed paper, accurate registration, reinforced top cards, bottom cards and finishing processes that require controlled positioning.
