Machine Description

This machine is primarily used in conjunction with a semi-automatic paper bag machine. It uses two narrow paper rolls and a paper rope as raw materials. The paper rope is bonded together and then gradually cut to form paper handles.
This machine can produce flat rope handles online and then attach the handles to paper bags online to create paper tote bags. It produces a stable speed of over 38 bags per minute.

Machine Features

Production Speed: 38 pieces/minute (adjustable depending on the rope material and paper bag size), supporting continuous production line integration.
Positioning Accuracy: Utilizing an optical sensor and servo drive system, placement accuracy is ≤±0.5mm, preventing misalignment or debonding.
Quick-drying Glue Bonding Technology: Equipped with an adhesive system imported from Taiwan or Germany, the adhesive spray volume is programmable, ensuring instant, overflow-free bonding of the rope and paper bag.
Adaptive Adjustment Mechanism: The machine features a built-in mechanical gap elimination module, compatible with bag widths of 220–450mm and rope widths of 12mm.
Human-Machine Interface: Equipped with a touchscreen + PLC control system, it integrates parameter presets, production counters, and fault self-diagnosis (such as rope shortage/glue breakage alarms).
Energy-saving Design: Automatically reduces power consumption in standby mode, supporting 24/7 operation.
Modular Architecture: Core components (rope feed module, glue gun, and lamination roller) feature quick-release design for easy maintenance. Heavy-duty body: The whole machine weighs about 2000kg and is equipped with imported linear guide rails to suppress high-speed vibration and extend service life.

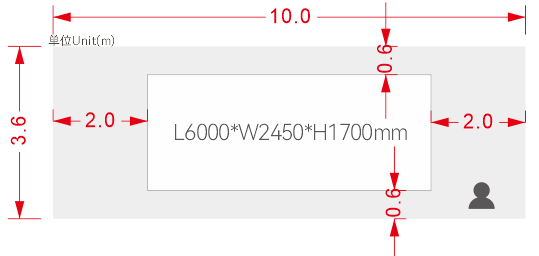

Machine Floor Plan

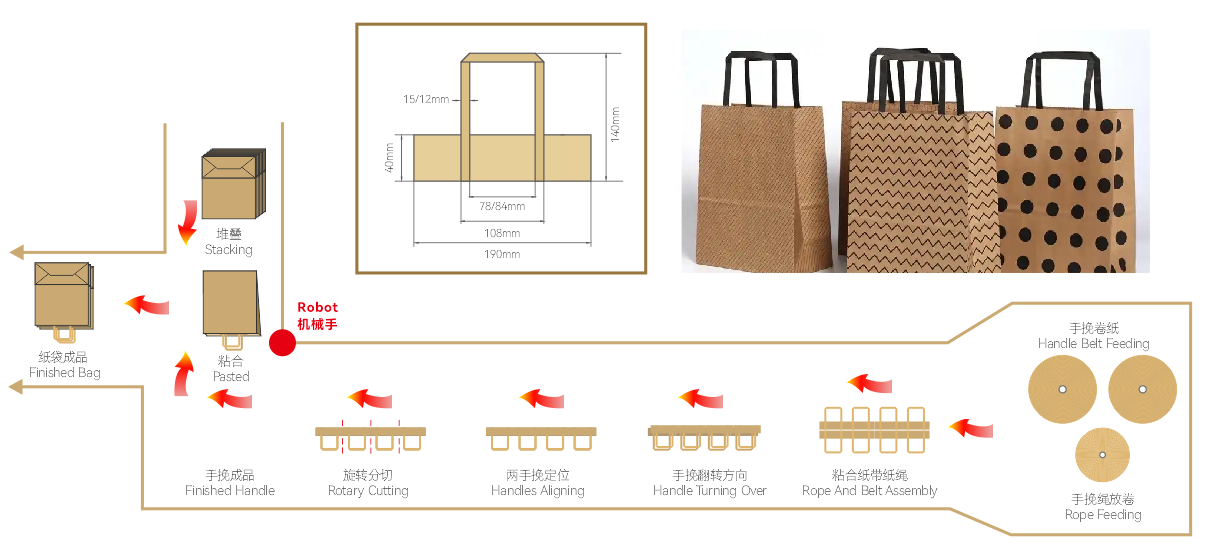

1)Rope Feeding
2)Rope And Belt Assembly
3)Handle Turning Over
4)Handles Aligning
5)Rotary Cutting
6)Finished Handle
7)Paper Bag Stacking
8)Pasted
9)Finished Bag
