Auto Paper Slitting Machine

CMSL-1300/1600

This machine mainly provides different witlth of paper reel to the printing machine, paper handle, paper rope and paper bag machine. It uses web as raw malarial, quickly cuts the web lengthwise to make different widths of paper reel. This machine is easy to operate, contreeled by the air loaded tension device with automatic deviation correction(optional), it's an essential equipment of paper product process,20pcs blades will be sent with machine for your option use.

Download

Inquire

Video
Description
Features
Technical Parameters
Process Flowchart

Machine Description

This machine mainly provides different witith of paper reel to the printing machine, paperhandle, paper rope and paper bag machine. it uses web as raw malarial, quickly cuts theweb lengthwise to make different widths of paper reel. This machine is easy to operate.contreeled by the air loaded tension device with automatic deviation correction(optional)it's an essential equipment of paper product process,20pcs blades will be sent withmachine for your option use.

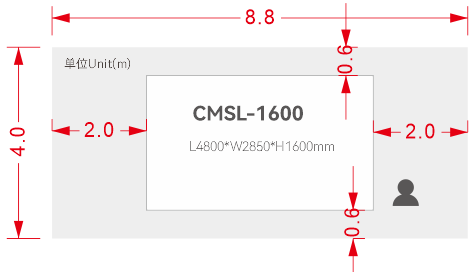

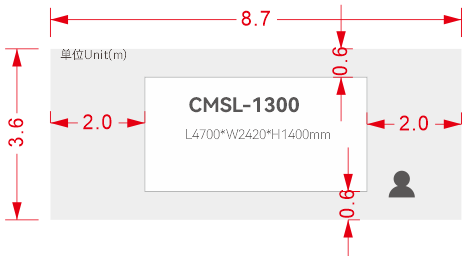

Machine Floor Plan

Machine Model	CMSL-1300	CMSL-1600
Max.Material reel Width	1200mm	1500mm
Max,Material reel Diameter	φ1000mm	φ1000mm
Min.Slitting width	30mm	30mm
Max.Product reel Diameter	φ1000mm	φ1000mm
Max.Slitting Speed	100m/min	100m/min
Paper Thickness	20-160g/m	20-160g/m
Total Power	7.5KW	10KW
Total Weight	Approx.3000kg	Approx.2500kg
Overall Dimension	L4800W2850H1600mm	L4700W2420H1400mm
Tension Contreeler	Pneumatic	Pneumatic
