CMRD-450C is a Paper bag ribbon insertion and rope threading machine designed for luxury paper bags, gift bags and shopping bags with ribbon or rope threading.
To configure CMRD-450C accurately, buyers should provide bag hole distance, ribbon material, rope diameter, threading style and target output. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag ribbon insertion and rope threading machine |
|---|---|
| Model / product name | CMRD-450C - Automatic Tote Bag Stringing Machine-CMRD-450C |
| Suitable bag applications | luxury paper bags, gift bags and shopping bags with ribbon or rope threading |
| Main production process | bag positioning, hole alignment, ribbon or rope feeding, threading and collection |
| Buyer confirmation points | bag hole distance, ribbon material, rope diameter, threading style and target output |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMRD-450C | Ribbon threading / top card luxury bag lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Bag Size
Support Various Bag Bottom Styles

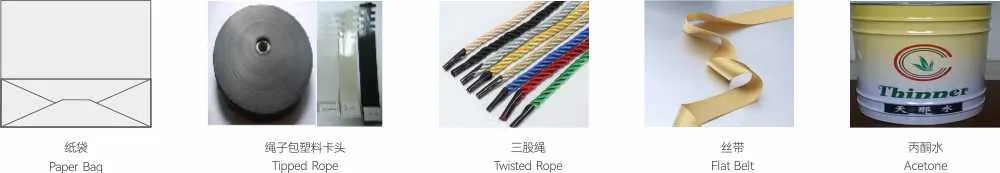

Raw Material

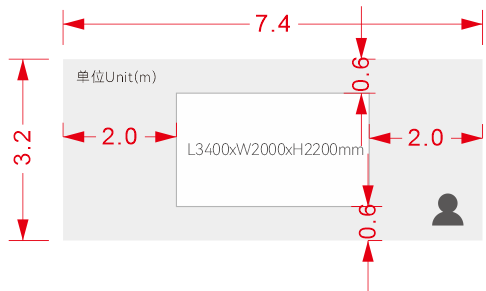

Machine Floor Plan
Machine Description
This fully automatic bag stringing machine features automatic bag feeding, continuous bag loading, punching, plastic wrapping, winding, counting, and automatic alarms. Bag size, height, and hole spacing are adjustable. The hole size accommodates popular three-strand ropes, elastic cords, and webbing. Adjustable rope length directly reduces costs and improves efficiency. This machine combines traditional packaging with stringing technology and features an automatic counting function for even more convenient packaging.
Machine Features
1. Fast Response: Suitable for high-speed production (e.g., 60-100 bags per minute).
2. Fault Self-Diagnosis: Real-time monitoring of equipment status, automatic alarms and solutions (e.g., rope breakage, bag jams, etc.)
3. Continuous Operation: Equipped with an integrated process for automatic feeding, rope threading, and discharging, reducing manual intervention.
4. Human-Machine Collaboration: A user-friendly touchscreen interface supports data-based management, including production statistics and efficiency analysis.
5. Low-Noise Operation: The servo system noise level is less than 70dB, surpassing traditional mechanical equipment.
6. Oil-Free: The fully electric drive eliminates the oil mist contamination of pneumatic systems, meeting food packaging hygiene requirements.
| Sheet Paper Size | |
| Min. bag Size | 150x160x(80-100)mm |
| Max. bag Size | 540x450x(80-250)mm |
| Bag tickness | |
| Bag tickness | 140-300GSM |
| Hole position | |
| Drawsring hole spacing | 65-200mm |
| Hole diameter | 4-6mm |
| Running | |
| Speed include pumping eyes | 50pcs/min |
| Installation | |
| Power | 7.5kw |
| Dimensions and weight | |
| Size | 3400x2000x2200mm |
| Weight | 2T |
| String length | |
| String length | Min.200mm plus hole spacing Total length 320-450mm, excluding rope tension |

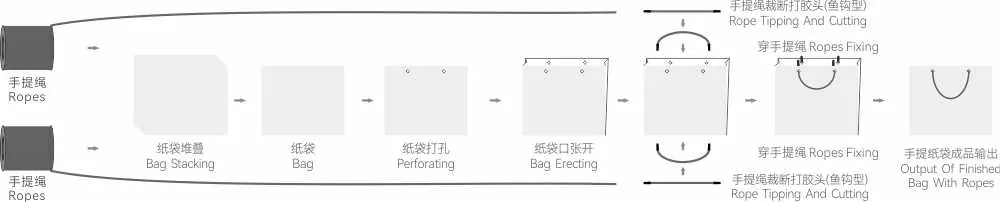

Process Flowchart
1)Bag Stacking
2)Automatic paper bag conveyor
3)Perforating
4)Bag Erecting
Synchronous Rope Tipping And Cutting
5)Ropes Fixing
6)Output Of Finished Bag With Ropes
CMRD-450C: Send the bag width and height, hole diameter and spacing, ribbon or rope material, diameter or width, threading pattern and required hourly output.
CMRD-450C: It depends on material stiffness, diameter, end shape and threading pattern. CHAMPION should test representative samples before confirming a multi-material configuration.
