CMRD-CAE-550 is a Paper bag ribbon insertion and rope threading machine designed for luxury paper bags, gift bags and shopping bags with ribbon or rope threading.
To configure CMRD-CAE-550 accurately, buyers should provide bag hole distance, ribbon material, rope diameter, threading style and target output. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag ribbon insertion and rope threading machine |
|---|---|
| Model / product name | CMRD-CAE-550 - Fully Servo Intelligent Tag String-threading Machine For Handbags-CMRD-CAE-550 |
| Suitable bag applications | luxury paper bags, gift bags and shopping bags with ribbon or rope threading |
| Main production process | bag positioning, hole alignment, ribbon or rope feeding, threading and collection |
| Buyer confirmation points | bag hole distance, ribbon material, rope diameter, threading style and target output |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMRD-CAE-550 | Ribbon threading / top card luxury bag lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Bag Size
Support Various Bag Bottom Styles

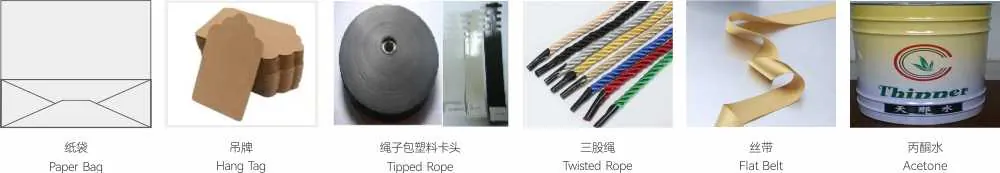

Raw Material

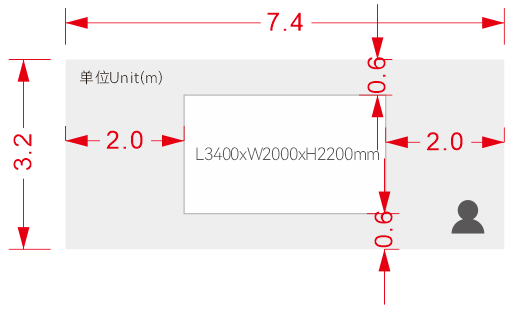

Machine Floor Plan
Machine Description
This fully servo-motor-driven, highly automated bag tag and string-threading machine automatically inserts hang tags and strings into various types of bags. Combined with an intelligent control system, it achieves high-precision and efficient string-threading, making it suitable for high-volume production. The fully automatic bag string-threading machine features automatic bag and tag feeding, continuous bag loading, plastic wrapping, string winding, counting, and automatic alarms. It also features adjustable bag size, height, and hole spacing, directly saving costs and improving efficiency.
Machine Features
1.High-Precision Control: Driven by a servo motor, positioning accuracy reaches ±0.1mm, ensuring precise string threading.
2.Fast Response: The servo system offers dynamic and sensitive response, adapting to high-speed production (e.g., 60-100 bags per minute).
3.Energy Efficiency: Energy consumption is reduced by over 30% compared to traditional pneumatic or mechanical drives.
4.Automatic Identification and Positioning: Automatically detects bag hole position using a vision system or sensor, adapting to different bag shapes.
5.Intelligent Hang Tag Insertion: Automatically feeds and inserts hang tags.
6.Parameter Memory: Stores multiple product specifications and recalls them with a single click when switching production lines, reducing commissioning time.
7.Fault Self-Diagnosis: Real-time monitoring of equipment status, automatically alerting and providing solutions when anomalies occur (e.g., broken string, bag jam, etc.).
8.Continuous Operation Capability: Equipped with an integrated process for automatic feeding, string threading, and unloading, reducing manual intervention.
9.Human-Machine Collaboration: The user-friendly touchscreen interface supports data-based management, including production statistics and efficiency analysis.
10.Low-Noise Operation: The servo system operates at less than 70dB, 11.Outperforming traditional mechanical equipment. No oil pollution: The fully electric drive avoids oil mist pollution from the pneumatic system and meets the hygiene requirements of food packaging.
| Sheet Paper Size | |
| Min. bag Size | 150x160x(80-100)mm |
| Max. bag Size | 540x450x(80-250)mm |
| Bag tickness | |
| Bag tickness | 140-300GSM |
| Hole position | |
| Drawsring hole spacing | 65-200mm |
| Hole diameter | 4-6mm |
| Running | |
| Speed include pumping eyes | 50pcs/min |
| Installation | |
| Power | 8.2kw |
| Dimensions and weight | |
| Size | 3400x2000x2200mm |
| Weight | 2T |
| String length | |
| String length | Min.200mm plus hole spacing Total length 270-580mm, excluding rope tension |
| Hanging Tag Application Range | 40mm -140mm |

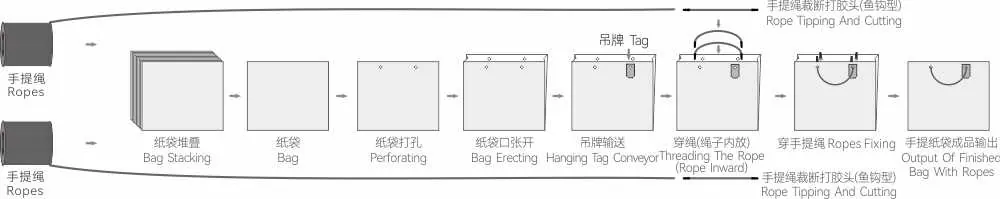

Process Flowchart
1)Bag Stacking
2)Bag
3)Perforating
4)Bag Erecting
5)Hanging Tag Conveyor
6)Rope Tipping And Cutting
7)Ropes Fixing
8)Output Of Finished Bag With Ropes
CMRD-CAE-550: Send the bag width and height, hole diameter and spacing, ribbon or rope material, diameter or width, threading pattern and required hourly output.
CMRD-CAE-550: It depends on material stiffness, diameter, end shape and threading pattern. CHAMPION should test representative samples before confirming a multi-material configuration.
