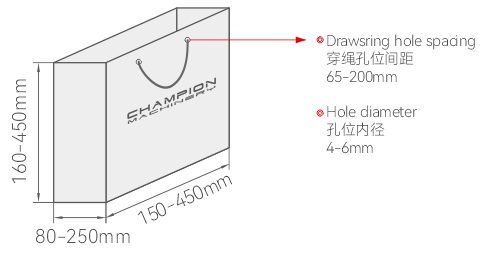

Bag Size

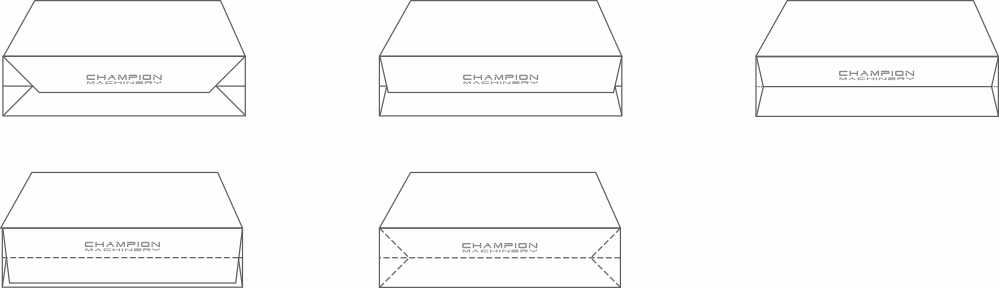

Support Various Bag Bottom Styles

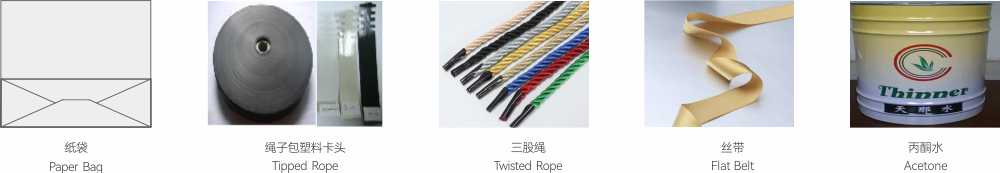

Raw Material

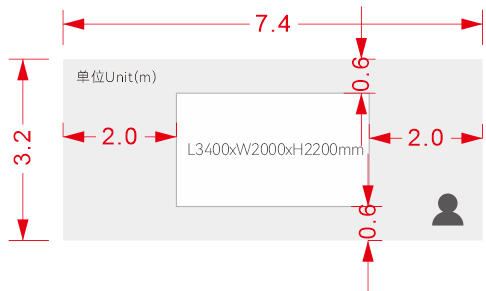

Machine Floor Plan

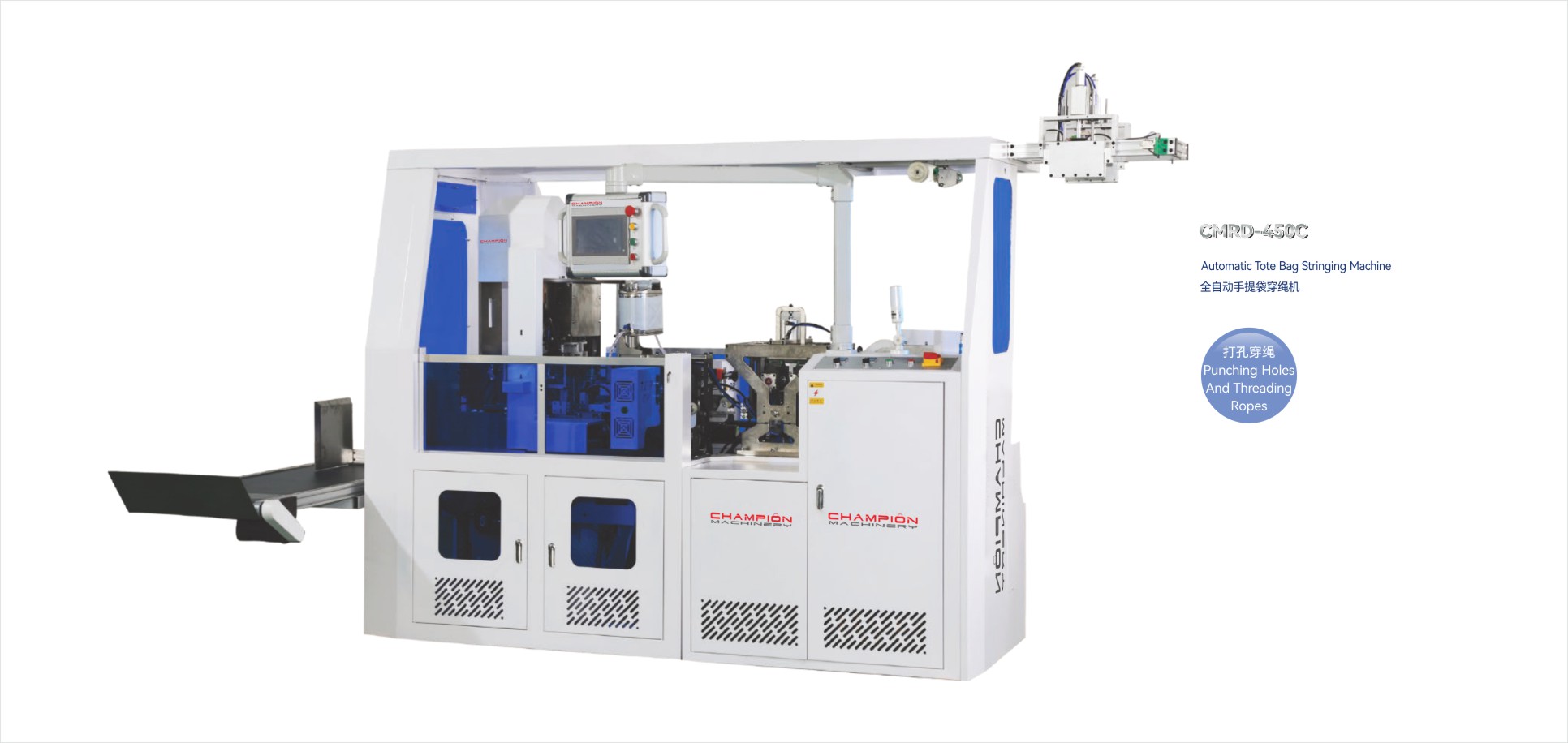

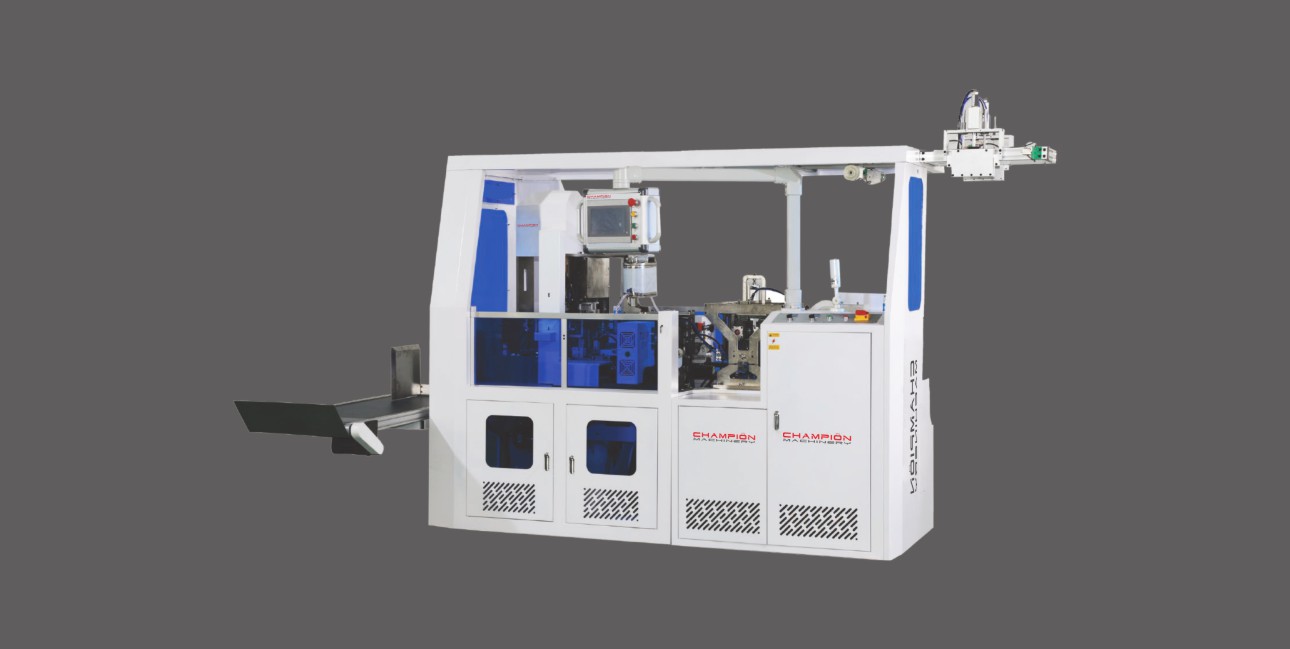

Machine Description

This fully automatic bag stringing machine features automatic bag feeding, continuous bag loading, punching, plastic wrapping, winding, counting, and automatic alarms. Bag size, height, and hole spacing are adjustable. The hole size accommodates popular three-strand ropes, elastic cords, and webbing. Adjustable rope length directly reduces costs and improves efficiency. This machine combines traditional packaging with stringing technology and features an automatic counting function for even more convenient packaging.

Machine Features

1. Fast Response: Suitable for high-speed production (e.g., 60-100 bags per minute).
2. Fault Self-Diagnosis: Real-time monitoring of equipment status, automatic alarms and solutions (e.g., rope breakage, bag jams, etc.)
3. Continuous Operation: Equipped with an integrated process for automatic feeding, rope threading, and discharging, reducing manual intervention.
4. Human-Machine Collaboration: A user-friendly touchscreen interface supports data-based management, including production statistics and efficiency analysis.
5. Low-Noise Operation: The servo system noise level is less than 70dB, surpassing traditional mechanical equipment.
6. Oil-Free: The fully electric drive eliminates the oil mist contamination of pneumatic systems, meeting food packaging hygiene requirements.

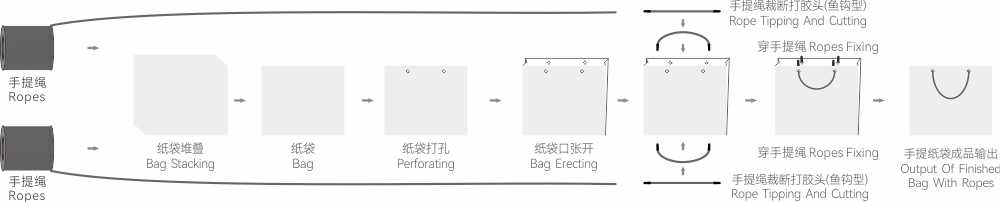

 Process Flowchart

1)Bag Stacking
2)Automatic paper bag conveyor
3)Perforating
4)Bag Erecting
Synchronous Rope Tipping And Cutting
5)Ropes Fixing
6)Output Of Finished Bag With Ropes
