CMHM-100A is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMHM-100A accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|
| Model / product name | CMHM-100A - Paper Bag Angle Flat Paper Handle Making Machine |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMHM-100A | Paper handle / rope making support machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.

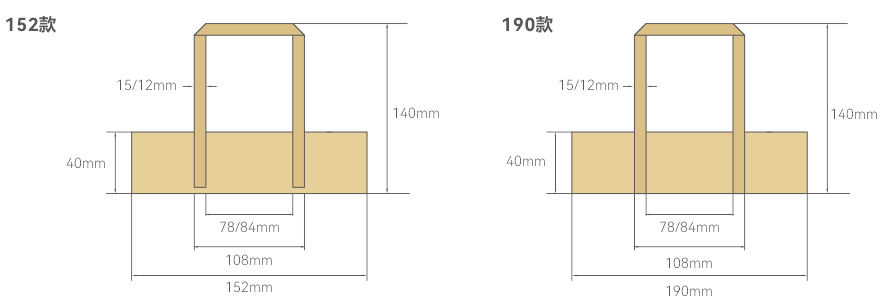

Products Size

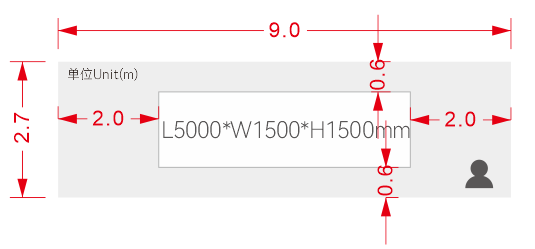

Machine Floor Plan
The machine is specially designed for supporting the production of eco-friendly paper bags, it canproduce fat handle efficiently and past it to the bags by manual. This machine uses 4 reels ofnarow-width kraft paper as raw material, gradually formed by a flat rope mold transmission systemto complete the production of flat ropes and flat handles to form a flat handle.
① This machine is easy to operate can stably produce 200-300pcs/min;
② The ǃat rope handle is fomed at one time, no need to produce the paper ropes separately, thus can greatly reducing the material and labor costs;
③ This machine can be equipped with automatic watering glue fundion and assembly line, which replaces the traditional way of gluing the handles by manual, thus greaty reducing labor and glue costs, speeding up the production speed, can help complete the customer's large-scale orders.
| Handle Spacing | 108mm固定 | Production Speed | 6000pairs/h |
| Paper Rope Width | 12mm/15mm可选 | Power Requirements | 380V,50HZ,3Phases,4wires |
| Paper Rope Height | 100mm | Total Power | 10KW |
| Paper Width | 40mm | Total weight | Apr.4000kg |
| Paper Length | 152/190mm可选 | Overall Dimension | L5000*W1500*H1500mm |
| Paper Rope Length | 340-360mm | Glue Type | 热熔胶Hot-melt glue |
| Paper Gram Weight | 100-120g/m |
1)Rope Feeding
2)Rope And Belt Assembly
3)Handle Cutting
4)Finished Handle
CMHM-100A: Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMHM-100A: They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
