CMPS-350(Single Head) is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMPS-350(Single Head) accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|
| Model / product name | CMPS-350(Single Head) - Paper Bag Auto Paper Handle Pasting Inline (Twisted ) With Handle Making Machine-Single Robotic |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMPS-350(Single Head) | Paper handle / rope making support machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
This machine is mainly supporting semi-automatic paper bag machines. Takestwo narrow paper reels and one paper rope as raw material, sticks paper beltstogether, which will be cut off gradually to form paper handles. it can producethe round rope handle on line, and stick the handle on the bag on line too, whichonto the paper bag without handles in further production and make it into paperhandbags, The speed is stable and can reach more than 38pcs/min.
Machine Features
Production Speed: 38 pieces/minute (adjustable depending on the rope material and paper bag size), supporting continuous production line integration.
Positioning Accuracy: Utilizing an optical sensor and servo drive system, placement accuracy is ≤±0.5mm, preventing misalignment or debonding.
Quick-drying Glue Bonding Technology: Equipped with an adhesive system imported from Taiwan or Germany, the adhesive spray volume is programmable, ensuring instant, overflow-free bonding of the rope and paper bag.
Adaptive Adjustment Mechanism: The machine features a built-in mechanical gap elimination module, compatible with bag widths of 220–450mm.
Human-Machine Interface: Equipped with a touchscreen + PLC control system, it integrates parameter presets, production counters, and fault self-diagnosis (such as rope shortage/glue breakage alarms).
Energy-saving Design: Automatically reduces power consumption in standby mode, supporting 24/7 operation.
Modular Architecture: Core components (rope feed module, glue gun, and lamination roller) feature quick-release design for easy maintenance. Heavy-duty body: The whole machine weighs about 2000kg and is equipped with imported linear guide rails to suppress high-speed vibration and extend service life.

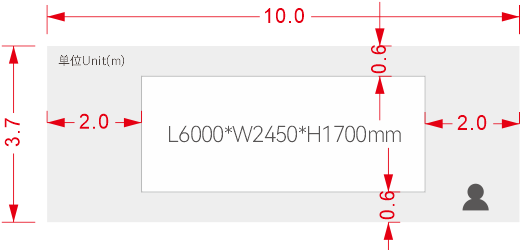

Machine Floor Plan
| Model | CMPS-350(Single Head) |
| Overall Dimension | L6000*W2450*H1700mm |
| Motor Brand | ZHENGMING Geared motor |
| Total Power | 380V,10KW,50HZ |
| Servo Motor Brand | IN O VANCE |
| Servo Motor Power | 750W750W Two group |
| PIC Programming Brand | 汇川IN O VANCE |
| Mechanical Arm | DELTA Taiwan |
| Paper Rope Handle Spacing | 75mm、95mm |
| Paper Width | 40mm |
| Paper Rope Length | 360mm |
| Paper Rope Height | 140mm |
| Paper Gram Weight | 90-130g/m³ |
| Bag Width | 220-450mm |
| Bag Height | 220-450mm |
| Top Opening Size Over | 120mm(Bag Width minus the width of folding ) |
| Production Speed | 33-43pcs/min |

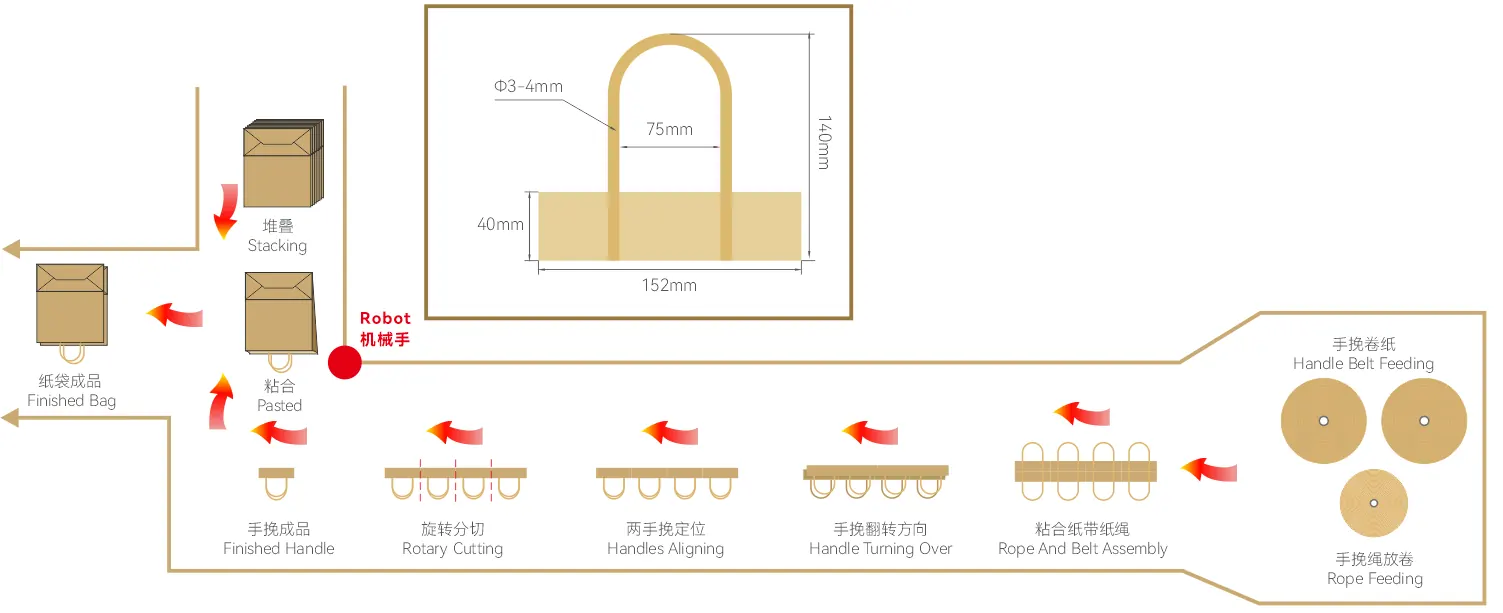

1)Rope Feeding
2)Rope And Belt Assembly
3)Handle Turning Over
4)Handles Aligning
5)Rotary Cutting
6)Finished Handle
7)Paper Bag Stacking
8)Pasted
9)Finished Bag
CMPS-350(Single Head): Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMPS-350(Single Head): They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
