CMFJ-6 is a Paper slitting or paper rope rewinding auxiliary machine designed for paper roll preparation, paper rope production and upstream material converting.
To configure CMFJ-6 accurately, buyers should provide source roll size, finished roll or rope specification, material GSM, winding tension and target output. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper slitting or paper rope rewinding auxiliary machine |
|---|---|
| Model / product name | CMFJ-6 - Paper Rope Rewinding Machine |
| Suitable bag applications | paper roll preparation, paper rope production and upstream material converting |
| Main production process | material unwinding, controlled slitting or rewinding, tension control and finished roll collection |
| Buyer confirmation points | source roll size, finished roll or rope specification, material GSM, winding tension and target output |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMFJ-6 | Paper handle / rope making support machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
This machine is mainly used with paper rope machine, using paperrope reel of paper rope machine as raw material. Through the high-speed rotation of the machine shaft, the paper rope is quicklyreleased at one end and rewind at the other end. lt can not onlyexpand the extemal diameter of the final paper rope reel and theinner diameter of the center of the paper rope reel, but alsoeliminate the possible knotting phenomenon in the onginal paperrope reel. Therefore,it is ensured that the paper rope greatlyimproves the production efficiency and quality in the subsequentproduction.
This machine has an automatic counting funclion, which canaccurately stop at the set number of meters, and is simple tooperate. The speed can reach 140m/min.The cost is greatly saved inmanagement and labor.

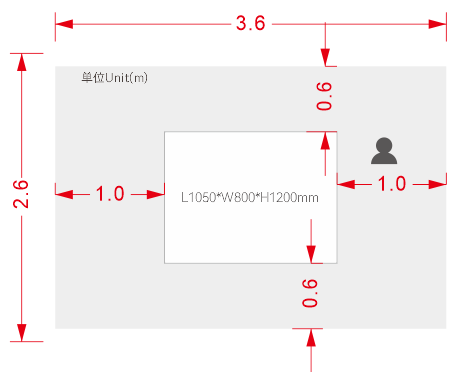

Machine Floor Plan
| Core Diameter of Raw Rope reel | φ76 mm | Power Requirements | 380V |
| Core Diameter of Final Rope reel | φ180mm | Total Powe | 2.2KW |
| Final Rope Reel Diameter | φ400-600mm | Total Weight | Approx.150KG |
| Max.Production Speed | 80-150M/min | Overall Dimension | L1050*W800*H1200mm |
CMFJ-6: Provide the source roll width and diameter, finished roll or rope specification, material type and GSM, winding direction, tension requirement and target output.
CMFJ-6: It prepares paper rolls or paper rope material for downstream handle making, converting or paper bag production. It is auxiliary equipment rather than a complete paper bag forming line.
