Machine Description

This machine is mainly supporting semi-automatic paper bag machines. Takestwo narrow paper reels and one paper rope as raw material, sticks paper beltstogether, which will be cut off gradually to form paper handles. it can producethe round rope handle on line, and stick the handle on the bag on line too, whichonto the paper bag without handles in further production and make it into paperhandbags, The speed is stable and can reach more than 38pcs/min.

Machine Features

Production Speed: 38 pieces/minute (adjustable depending on the rope material and paper bag size), supporting continuous production line integration.
Positioning Accuracy: Utilizing an optical sensor and servo drive system, placement accuracy is ≤±0.5mm, preventing misalignment or debonding.
Quick-drying Glue Bonding Technology: Equipped with an adhesive system imported from Taiwan or Germany, the adhesive spray volume is programmable, ensuring instant, overflow-free bonding of the rope and paper bag.
Adaptive Adjustment Mechanism: The machine features a built-in mechanical gap elimination module, compatible with bag widths of 220–450mm.
Human-Machine Interface: Equipped with a touchscreen + PLC control system, it integrates parameter presets, production counters, and fault self-diagnosis (such as rope shortage/glue breakage alarms).
Energy-saving Design: Automatically reduces power consumption in standby mode, supporting 24/7 operation.
Modular Architecture: Core components (rope feed module, glue gun, and lamination roller) feature quick-release design for easy maintenance. Heavy-duty body: The whole machine weighs about 2000kg and is equipped with imported linear guide rails to suppress high-speed vibration and extend service life.

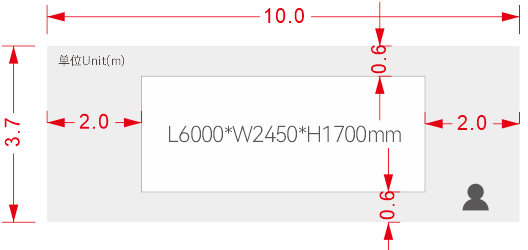

Machine Floor Plan

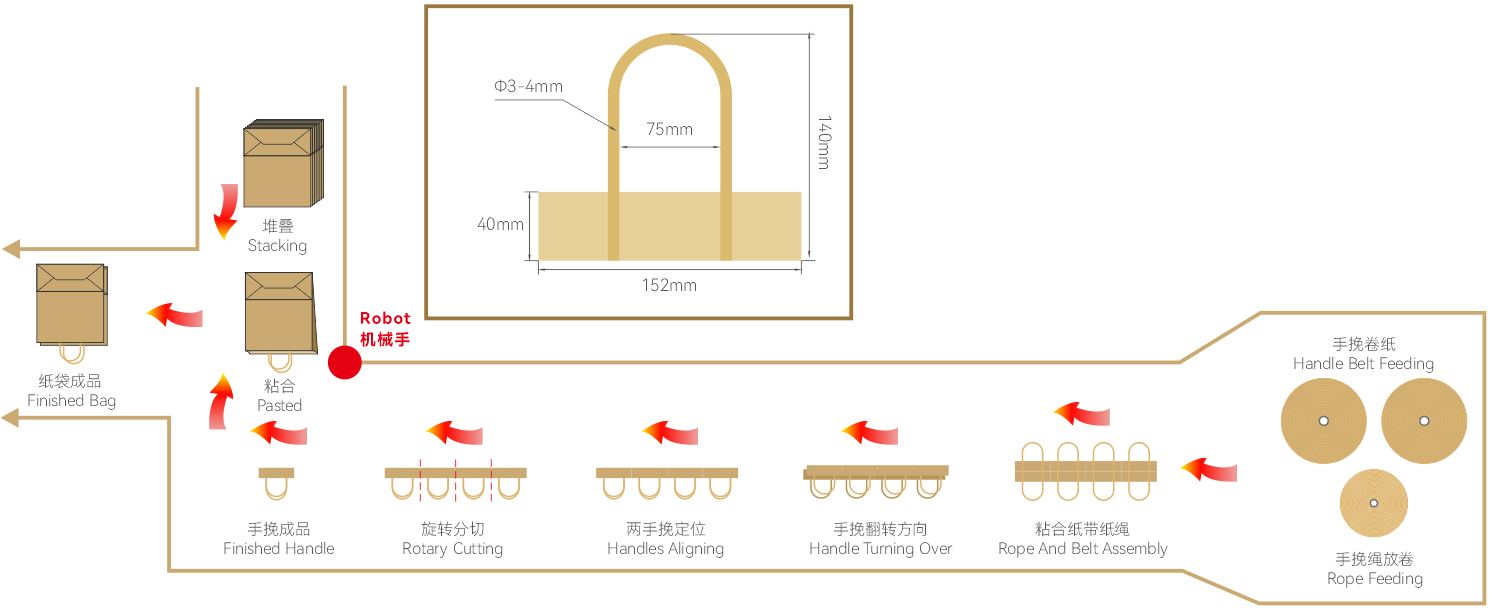

1)Rope Feeding
2)Rope And Belt Assembly
3)Handle Turning Over
4)Handles Aligning
5)Rotary Cutting
6)Finished Handle
7)Paper Bag Stacking
8)Pasted
9)Finished Bag
