CMTF-1100AT，CMBF-420A+CMBS-1000RS is a Sheet fed luxury paper bag production line designed for luxury shopping bags, boutique bags, gift bags and premium packaging bags.
To configure CMTF-1100AT，CMBF-420A+CMBS-1000RS accurately, buyers should provide sheet size, top card, bottom card, ribbon or handle process and finished bag sample. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Sheet fed luxury paper bag production line |
|---|---|
| Model / product name | CMTF-1100AT，CMBF-420A+CMBS-1000RS - Sheet Fed Paper Bag Production Line GROUP A+B |
| Suitable bag applications | luxury shopping bags, boutique bags, gift bags and premium packaging bags |
| Main production process | sheet feeding, tube forming, top card inserting, bottom card placing and precision pasting |
| Buyer confirmation points | sheet size, top card, bottom card, ribbon or handle process and finished bag sample |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMTF-1100AT，CMBF-420A+CMBS-1000RS | Two-sheet luxury paper bag production lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Advantage
1. High-level streamlined sheet paper feeding and conveying design, stableand efficient, with flexible production capacity
2. Applicable to a variety of thicknesses and dimensions of paper, saving timeand efficiency,with simple commissioning and stable performance, andaffordable and cost-effective performance
3.Computerized Servo technology is used for the sheet paper feeding and3conveying sections, which can synchronize with the precise speed of therear forming section and can achieve separate control over the formersection.
4. Simple maintenance, long-lasting life, non-defect top folding, top insertinghigh production, and uniform bag making, are well reputated by customers.
5. The machine greatly improves production efficiency while saving a lot oflabors. lt is widely applicable to printing and packaging enterprises ofdifferent scales or business types.
6.Configured with remote control, easy to operate, friendly to starters, andeasy to handle with and even unmanned operation
Machine Description
This automatic sheet-fed paper bag machine, combining two semi-automatic modular lines (A+B), combines flexibility, efficiency, and a high degree of automation. Designed to meet the diverse production requirements of sheet-fed paper bags, this equipment demonstrates strong market adaptability with its wide range of applications, including clothing, gift ware, and shopping paper bags.
By employing high-speed, high-precision production processes and an intelligent control system, it reduces costs, improves efficiency, and optimizes quality. Its modular design allows for flexible adaptation to diverse production needs. Its environmentally friendly features align with current trends in green production, making it a leading upgrade option for traditional paper bag production equipment.
| Model | CMTF-1100AT CMBF-420A+CMBS-1000RS |

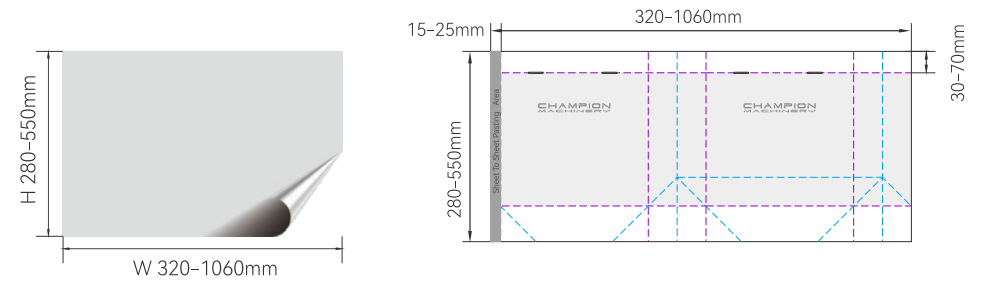

| Sheet Paper Size | |
| Sheet Paper Width | 320-1060mm |
| Sheet Paper Length | 0-550mm |

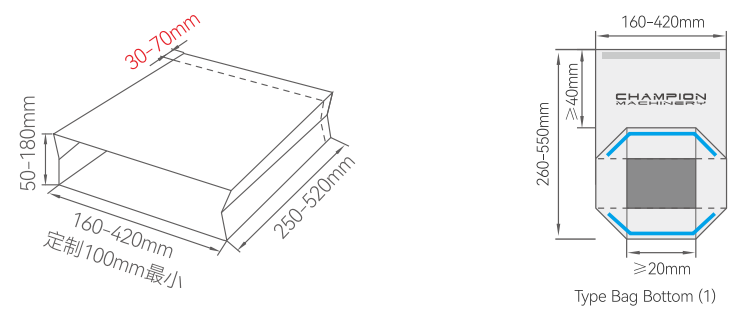

| Paper Bag Tube Size | |
| Paper Bag Top Folder Depth | 30-70mm |
| Paper Bag Tube Width | 160-420mm (Customized Min 100mm) |
| Paper Bag Tube Length | 210-520mm |
| Paper Bag Gusset | 70-180mm |
| Sheet Paper Glue Side | 15-25mm |
| Suitable Paper Material & Glue & Handle | |
| Kraft Paper | 120-350gsm |
| Coat Paper / Laminated | 128-250gsm |
| White Board Paper | 157-300gsm |
| Grey Board Paper | 128-300gsm |
| Glue | Hot melt glue option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag |

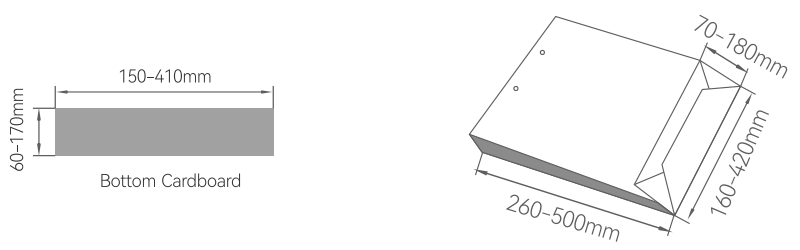

| Bottom Cardboards | |
| Bottom Cardboards Width | 60-170mm |
| Bottom Cardboards Length | 150-410mm |
| Bottom Cardboards Thickness | 200-500gsm |
| Running | |
| Speed | 0-80 pcs/min |
| Installation | |
| Total Power Supply | 17.5KW |
| Compressed Air / Capacity | 6bar |
| Air Tank Capacity | 15m³/h |

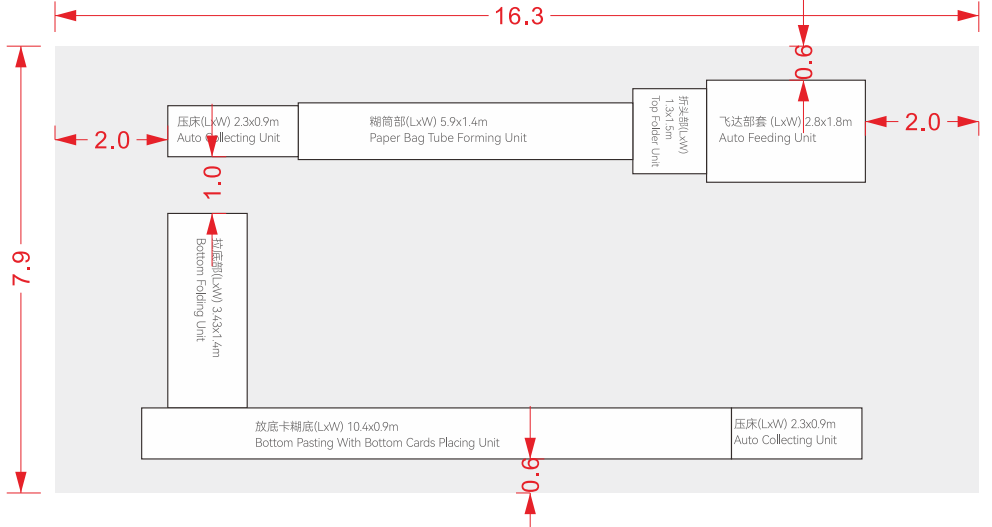

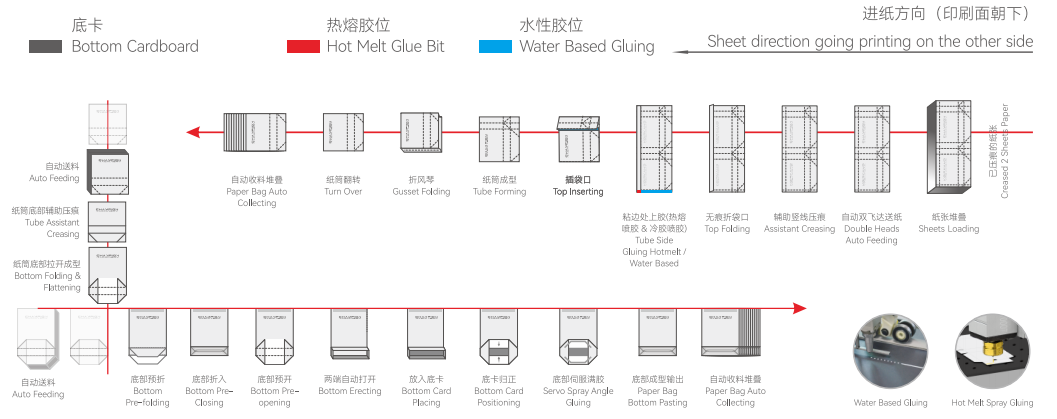

Group A: Paper Bag Tube Forming
1)Sheets Loading
2)Double Heads Auto Feeding
3)Assistant Creasing
4)Top Folding
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Gusset Folding
9)Turn Over
10)Paper Bag Auto Collecting
Group B: Paper Bag Bottom Folding + Bottom Gluing
11)Auto Feeding
12)Tube Assistant Creasing
13)Bottom Folding & Flattening
14)Bottom Pre-folding
15)Bottom Pre-Closing
16)Bottom Pre-opening
17)Bottom Erecting
18)Bottom Cardboard Placing
19)Bottom Cardboard Positioning
20)Servo Spray Angle Gluing
21)Paper Bag Bottom Pasting
22)Paper Bag Auto Collecting
CMTF-1100AT，CMBF-420A+CMBS-1000RS: Provide the flat sheet and finished bag dimensions, paper GSM, printing reference, top and bottom card sizes, handle or ribbon design, glue requirements and target output.
CMTF-1100AT，CMBF-420A+CMBS-1000RS: Sheet-fed production is suitable for premium printed paper, accurate registration, reinforced top cards, bottom cards and finishing processes that require controlled positioning.
