CMHM-100 is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMHM-100 accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|

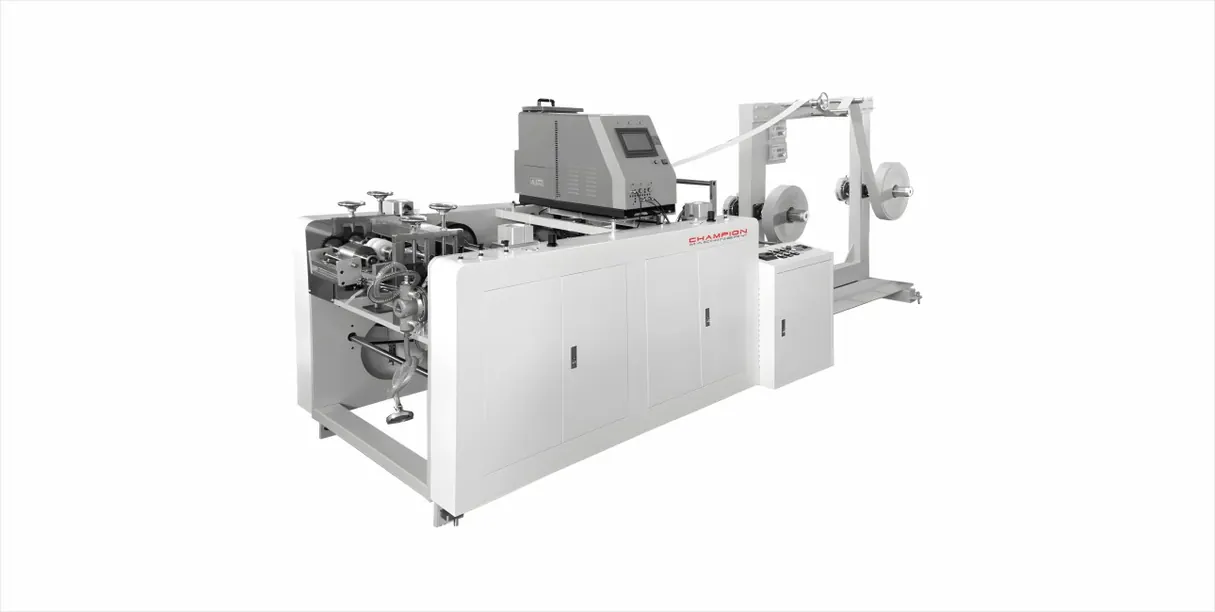

| Model / product name | CMHM-100 - Paper Bag Twisted Paper Handle Making Machine |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMHM-100 | Paper handle / rope making support machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.

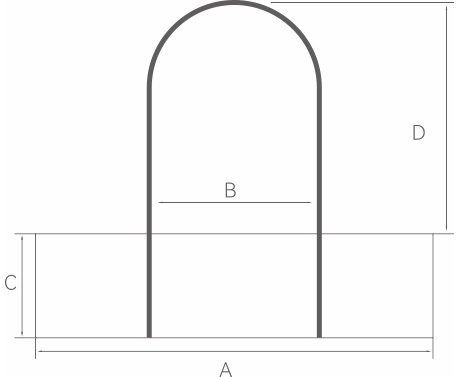

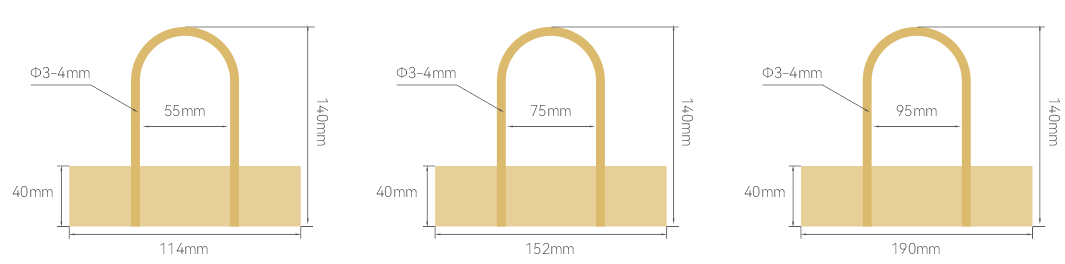

Products Size

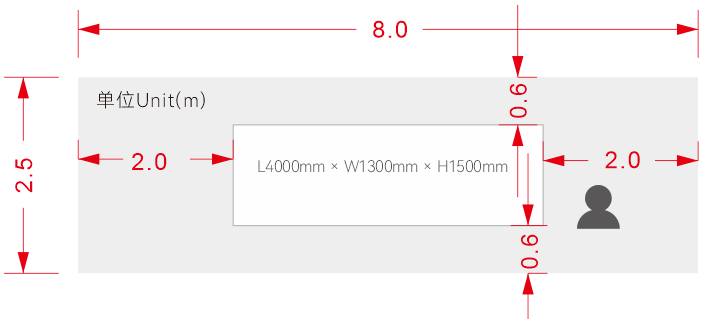

Machine Floor Plan
This machine was designed to work with paper bag machines, can produce twisted paper rope handle in fast speed. After pasting the handles on paper bags inner sides to make paper bags with handles. With 2 reels of narrow kraft paper and 1 reel of twisted paper rope as material, through paper cuting and rope sticking and then forming to handles. Also the machine can count and gluing automatically, can produce handles with high eƽciency, it's an ideal matching machine for paper bag machines.
1、This machine is easy to operate, steady in running, fast in speed, can produce 10000 pairs of handle per hour.
2、With reliable material, the ǁnished paper bags from this machine can it 15KG of heavy staƺ, can ǁt many sizes of paper bags, the machines also can produce various kinds of paper bag handles.
3、The machines can assemble auto gluing paDž, which can replace manual gluing processing, hence saving labor cost and glue cost, also speed up the production, thus suppoDž ǁnish of big quantity order.
4、With the imported hot-melt glue machine which with many after-salesservice center global, customer will get fast technical support.
| Paper reel Core Diameter | φ76mm(3") | Paper Length | 152-190mm(Optional) |
| Max.Paper reel Diameter | φ1000mm | Paper Rope Handle Spacing | 75-95mm(Optional) |
| Production Speed | 10000pairs/hour | Paper Width | 30/40mm(Optional) |
| Power Requirements | 380V, 50HZ, 3Phases, 4wires | Paper Rope Height | 100mm |
| Total Power | 7.8KW | Paper reel Diameter | φ3.0-4mm |
| Total Weight | Approx. 1500kg | Glue Type | Hot-melt glue |
| Overall Dimension | L4000 × W1300 × H1500mm |
1)Rope Feeding
2)Rope And Belt Assembly
3)Handle Cutting

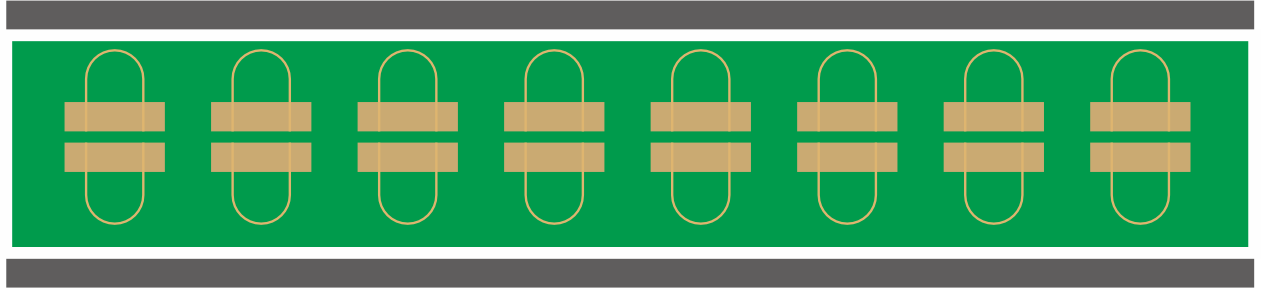

4)Finished Handle
CMHM-100: Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMHM-100: They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
