Advantages

1. High-end streamlined sheet paper feeding and conveying design, stable and efficient, with flexible production capacity;
2. Applicable to a variety of thicknesses and dimensions of paper, saving time and efficiency, with simple commissioning and stable performance, and affordable and cost-effective performance;
3、Servo power is used for the sheet paper feeding and conveying sections, which can synchronize with the precise speed of the rear forming section and can achieve separate control over the former section.
4、Simple maintenance, long service life, non-creasing paper bag folding opening and inserted bag opening ensure the beauty of the paper bag;
5. The original CHAMPION suction system with full conveyor belt is adopted as the forming system of the host machine, which can fix the paper and send it forward with stable adsorption, minimizing friction and scratches;
6、The machine greatly improves production efficiency while saving a lot labor. It is widely applicable to packaging enterprises of difference scales;
7、 The machine is designed with double counting function at the head and the end. And the flat design of feeder allows operation by a single person, and even women can also operate the machine easily, with the low requirements for the operator.
8. Configured with remote control, easy to operate, friendly to starters, and easy to realize navigation and even unmanned operation;

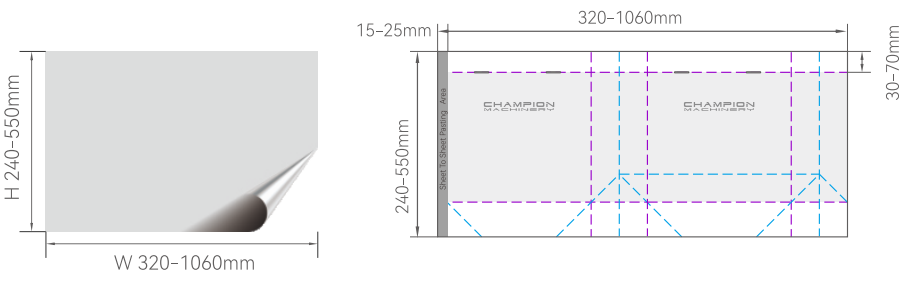

Paper Size

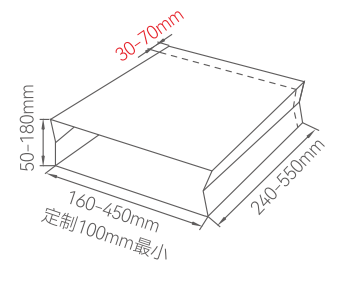

Bag Size

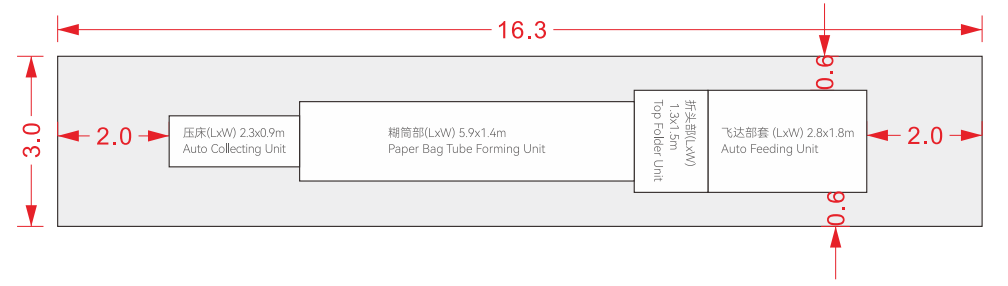

Machine Floor Plan

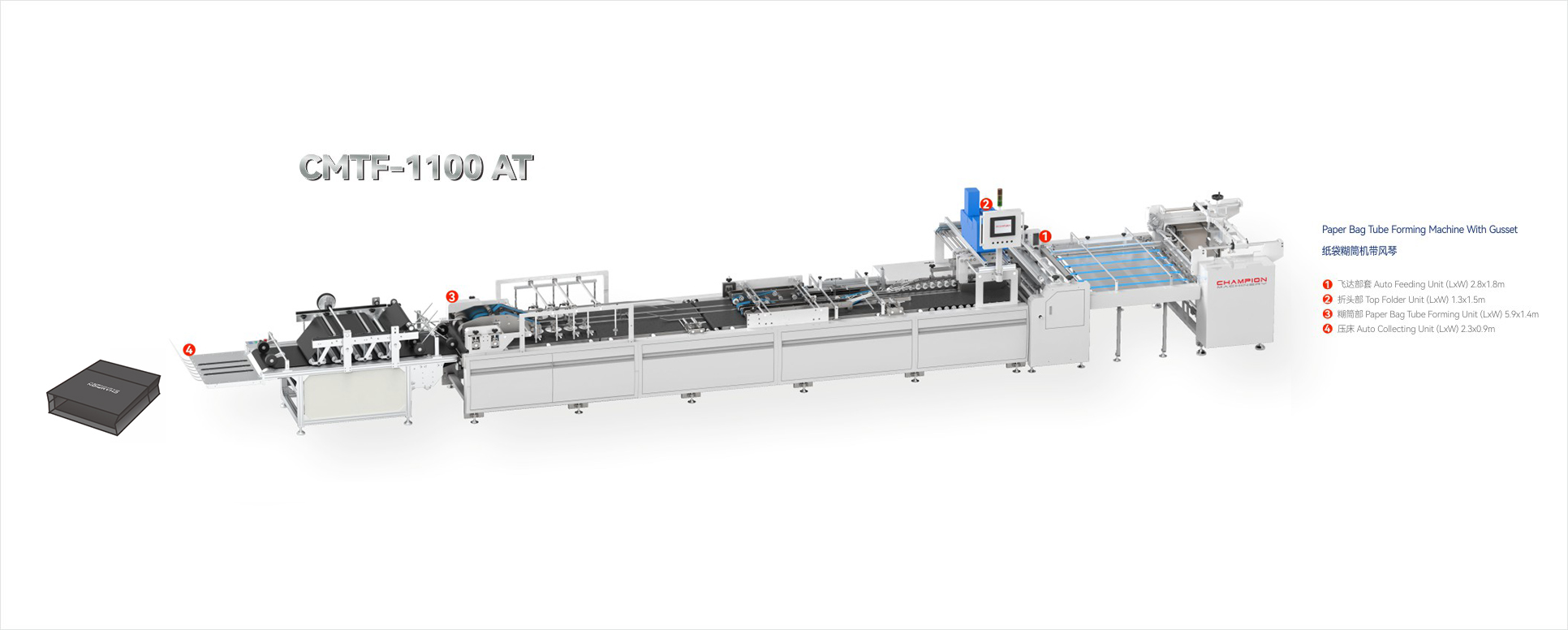

Machine Description

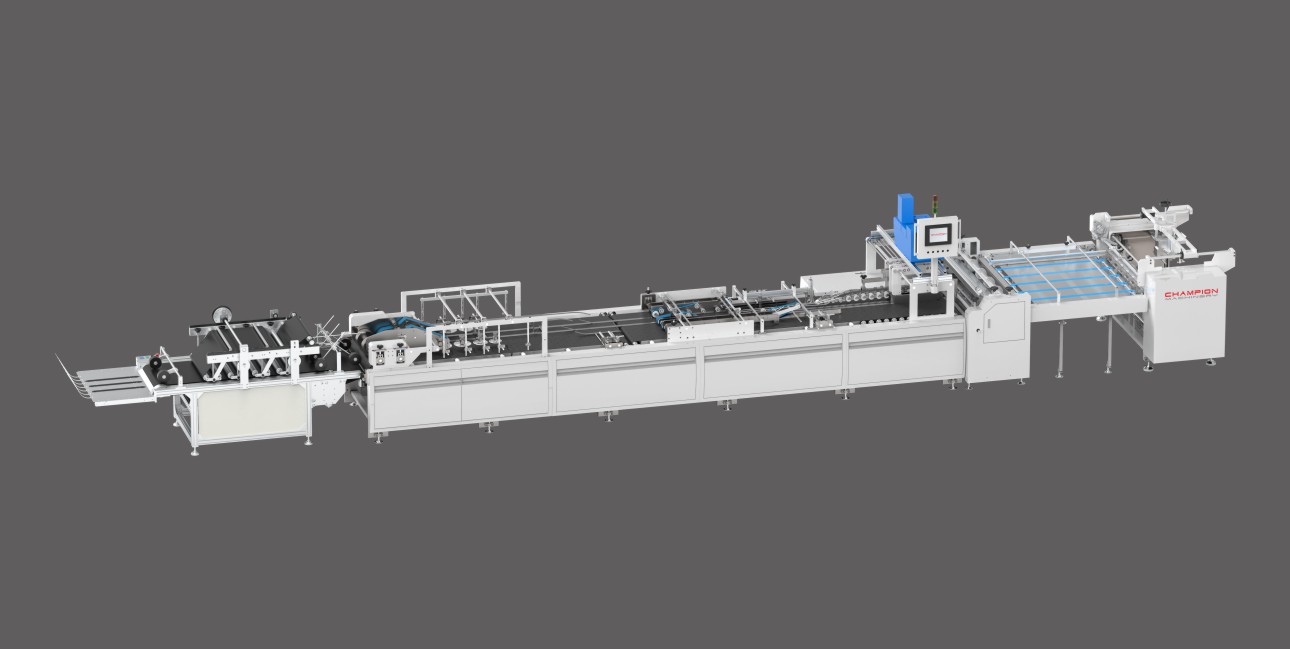

The paper bag tube gluing machine is a core piece of equipment in paper bag production. It automatically glues single sheets of creased cardboard into a tube-shaped structure, providing a prefabricated tube for the subsequent gluing process. Its workflow primarily includes automatic paper feeding, positioning and calibration, gluing and gluing, accordion folding, and pressing and forming.
It is primarily used to produce tubes for paper containers such as garment bags, shopping bags, gift bags, and food packaging bags. It is compatible with a variety of materials, including kraft paper, coated paper, and laminated paper.

Machine Features

Efficient and Continuous Production: A fully automatic paper feeding system with variable frequency speed control achieves a high-speed output of 70-100 paper tubes per minute. Integrated tube gluing, accordion folding, and laminating lines reduce manual intervention.
Precise Positioning Control: A photoelectric sensor plus side/pull gauge system ensures paper alignment accuracy ≤±0.5mm. A servo motor drive coupled with PLC programming allows one-touch adjustment of parameters such as accordion fold depth and laminating force.
Flexible Adaptability: Suitable for a wide range of weights (150-350g), including special materials such as coated paper and paper-yarn composites.
Intelligent Glue Control System: Available with either cold glue roller coating or hot melt glue spraying technology, glue quantity is independently controlled to prevent overflow. Select models feature a glue path self-diagnosis function, providing real-time warning of blockages and faults.
Durable and Maintenance-Friendly Design: Key components are constructed of wear-resistant materials for extended service life.

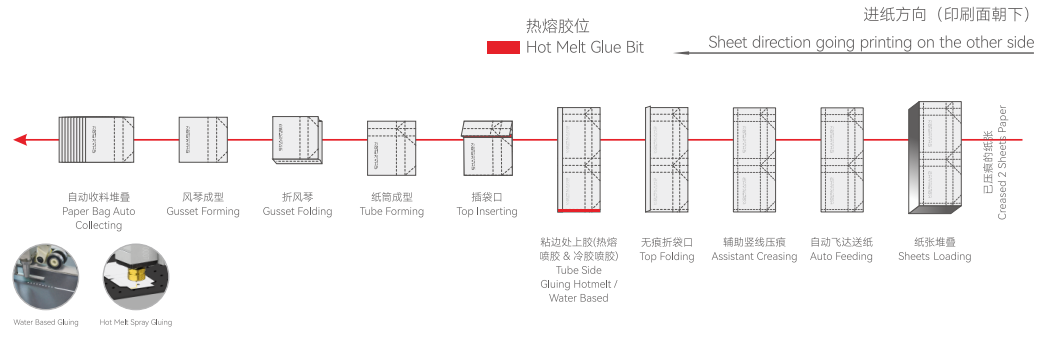

11)Sheets Loading
12)Auto Feeding
13)Assistant Creasing
14)Top Folding
15)Tube Side Gluing Hotmelt / Water Based
16)Top Inserting
17)Tube Forming
18)Gusset Folding
19)Gusset Forming
20)Paper Bag Auto Collecting
