Double Sheets Pasting Paper Bag Machine With Auto Bottom Cardboard Production Line A+B

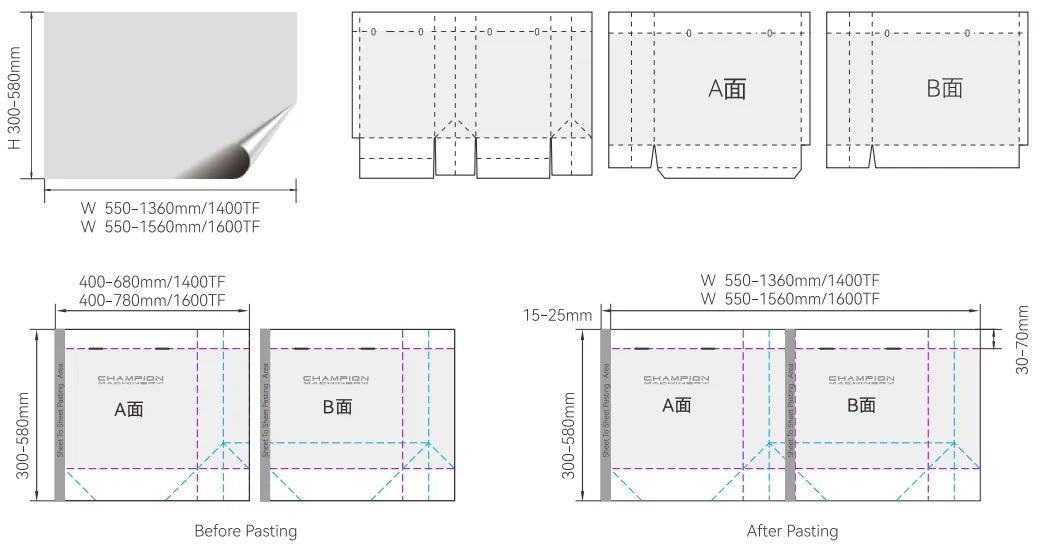

Paper Size

①Postion above top folding line
②Postion below top folding line
③Top cardboard pasting 4 pcs same size
④Top cardboard pasting 4 pcs different size
⑤Paper bag body
⑥ Paper bag bottom type (1)
⑦ Paper bag bottom type (2)
⑧ Paper bag gusset

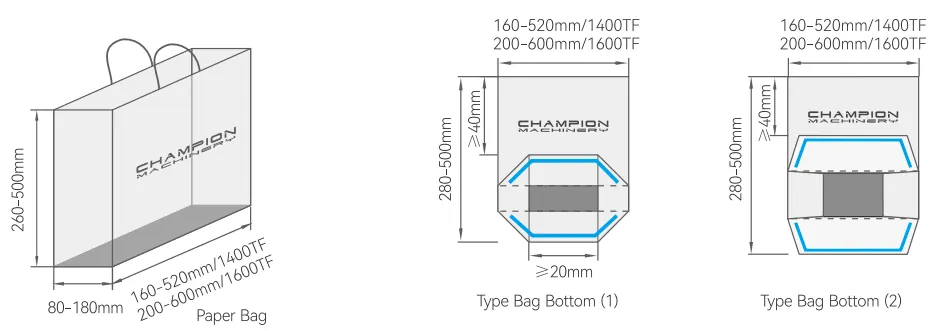

Bag Size

---

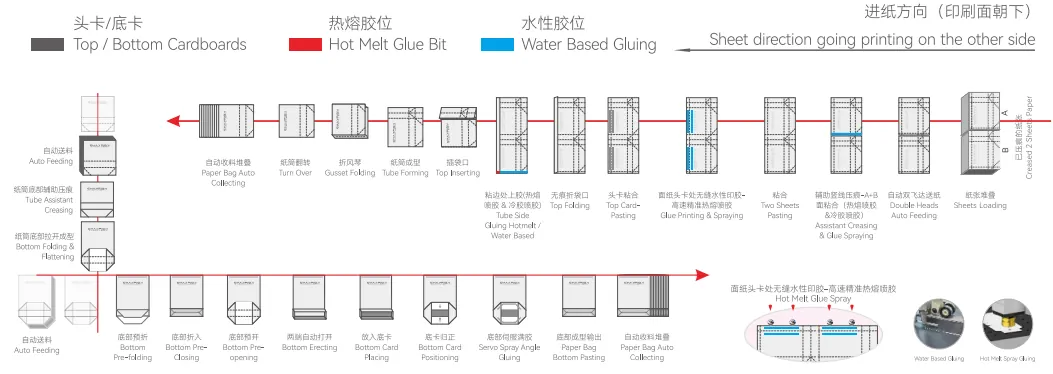

Machine Floor Plan

---

Advantage

1. It is widely applicable due to high productivity and easy adjustment. lt can beapplied to the production of small, medium and large or customized two-sheet paper bags in small, medium or large quantities, and to production ofhigh-end two-sheet paper bags with high requirements for technology.precision, appearance and quality, and two-sheet/sheet-feeding paper bagswith complex structures;
2. The solution of this line manufactures the paper bag in 1 station, withfunctions of two sheets pasting, top card pasting, top folding, bottomreinforcement placing, bag forming and gluing in full pattern of the bottomshape.
3.High precision, high production, Low requirement in operators' experienceand low wastage, are well-known features of machines from ChampionMachinery.
4. In reference of your work plant plan, we supply different Line layouts, like U shape, L shape, or straight (L) Line. Functions or separations of the line, are supposed to work partially or fully
5.Specifically designed top cards anti-slippery system, applies hot-melt gluing, toensure the top cards instant stick to the paper. Meanwhile, remarkable patenteddesign of water-based glue printing and card pasting system makes the topcards fixing in high precision and long lasting.
6. Anti-jamming system is designed and equipped, to protect production againstjamming or continuous jamming.
7. Patented technology, including NG output against non-stop production, ensuresyou decrease the wastage of your production, and NG production stop. NGoutput or non-gluing or auto stop is currently designed against double layersheets feeding, sheets tilting, top card missing, half side sheet missing, missingor wrongly placed bottom reinforcement, and jamming of bag running ...
8.Fresh operator friendly design and programming, ensure you run production8stably, fast in size changing, and confident in investing in your business.

Machine Description

This automatic sheet-fed paper bag machine, combining two semi-automatic modular lines (A+B), combines flexibility, efficiency, and a high degree of automation. Designed to meet the diverse production requirements of sheet-fed paper bags, this equipment demonstrates strong market adaptability with its wide range of applications, including clothing, gift ware, and shopping paper bags.
By employing high-speed, high-precision production processes and an intelligent control system, it reduces costs, improves efficiency, and optimizes quality. Its modular design allows for flexible adaptation to diverse production needs. Its environmentally friendly features align with current trends in green production, making it a leading upgrade option for traditional paper bag production equipment.

Machine Features

1. High-level streamlined sheet paper feeding and conveying design, stable and efficient, with flexible production capacity
2. Applicable to a variety of thicknesses and dimensions of paper, saving time and efficiency, with simple commissioning and stable performance, and affordable and cost-effective performance
3. Computerized Servo technology is used for the sheet paper feeding and conveying sections, which can synchronize with the precise speed of the rear forming section and can achieve separate control over the former section.
4. Simple maintenance, long-lasting  life, non-defect top folding, top inserting, high production, and uniform bag making, are well reputated by customers.
5. The machine greatly improves production efficiency while saving a lot of labors. It is widely applicable to printing and packaging enterprises of different scales or business types.
6. Configured with remote control, easy to operate, friendly to starters, and easy to handle with and even unmanned operation.

Group A: Paper Bag Tube Forming
1)Sheets Loading
2)Double Heads Auto Feeding
3)Assistant Creasing & Glue Spraying
4)Two Sheets Pasting
5)Glue Printing & Spraying
6)Top Card-Pasting
7)Top Folding
8)Tube Side Gluing Hotmelt / Water Based
9)Top Inserting
10)Tube Forming
11)Gusset Folding
12)Turn Over
13)Paper Bag Auto Collecting

Group B: Paper Bag Bottom Folding + Bottom Gluing
14)Auto Feeding
15)Tube Assistant Creasing
16)Bottom Folding & Flattening
17)Bottom Pre-folding
18)Bottom Pre-Closing
19)Bottom Pre-opening
20)Bottom Ercting
21)Bottom Cardboards Placing
22)Bottom Cardboards Positioning
23)Servo Spray Angle Gluing
24)Paper Bag Bottom Pasting
25)Paper Bag Auto Collecting
