Fully Automatic Luxury Paper Bag Production Line With Two Sheets /Single Sheet Feeding Four Top Cards Pasting One Bottom Card Placing

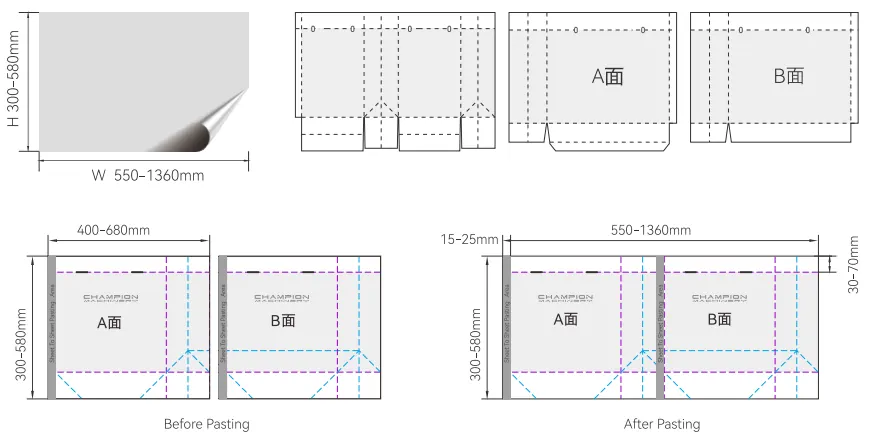

Paper Size

Bag Size

\

Machine Floor Plan

Machine Description

The fully automatic double-stitch paper bag machine combines high efficiency and a high degree of automation, specifically designed to meet the production needs of double-stitch paper bags. This machine demonstrates strong market adaptability with its wide range of applications, including luxury goods, clothing, gifts, and shopping paper bags.
By utilizing double-stitch forming technology, high-speed, high-precision production processes, and an intelligent control system, it reduces costs, improves efficiency, and optimizes quality. Its modular design allows for flexible adaptation to diverse production needs. Its environmentally friendly features align with current trends in green production, making it a leading upgrade option for traditional paper bag production equipment.

Machine Features

1.  Splicing Technology: Utilizing independently developed double-splicing technology, the machine ensures precise paper bag dimensions and precise shaping. It can splice two smaller paper bags into one large one, eliminating the need for additional large-scale equipment and materials, significantly reducing production costs and investment.
2.  Efficient Automation: This machine features a fully automated process, completing the entire production process from raw materials to finished bags, including automatic bag splicing, header card application, tube forming, accordion folding, bottom pulling, bottom card application, bottom gluing, bottom forming, and finished bag finishing.
3.  Intelligent Control: The main control circuit utilizes an imported single-chip microcomputer, a human-machine interface, and variable frequency control. Parameter setting is quick and easy, and operation is centralized and intuitive, achieving fully user-friendly, fully automatic operation. Digital fault self-diagnosis provides clear fault diagnosis at a glance, facilitating quick and easy maintenance and adjustments.
4.  Reduced Labor Costs: With a high degree of automation, the entire production process can be completed by only one person, eliminating 3-5 labor costs and intermediate handling steps. Easy to learn, it saves labor costs and offers a more user-friendly experience.
5.  Durability and Easy Maintenance: The dual-frequency design features a simple mechanical structure, minimal wear, easy maintenance, and a long service life.
6.  Key Components: The entire machine utilizes renowned brand components such as the German Rexroth dual-servo control system, Siemens PLC, and frequency converter, ensuring stable performance, high efficiency, and durability.
7.  Environmentally Friendly Materials: The bonding process primarily utilizes environmentally friendly water-based and hot-melt adhesives, meeting food packaging safety standards. The machine structure is easy to clean and maintain, reducing waste generation.
8.  Material Compatibility: Supports a variety of paper materials (120-350g/m²), including kraft paper, white cardboard, and coated paper.

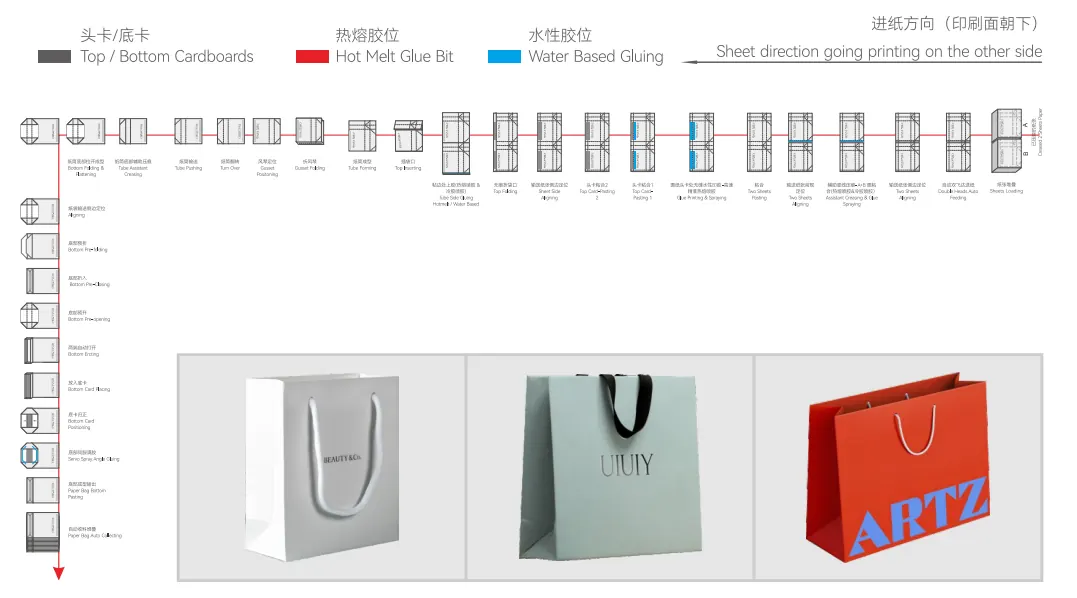

1)Sheets Loading
2)Double Heads Auto Feeding
3)Two Sheets Aligning
4)Assistant Creasing & Glue Spraying
5)Two Sheets Aligning
6)Two Sheets Pasting
7)Glue Printing & Spraying
8)Top Card-Pasting 1
9)Top Card-Pasting 2
10)Sheet Side Aligning
11)Top Folding
12)Tube Side Gluing Hotmelt / Water Based
13)Top Inserting
14)Tube Forming
15)Gusset Folding
16)Gusset Positoning
17)Turn Over
18)Tube Pushing
19)Tube Assistant Creasing
20)Bottom Folding & Flattening
21)Aligning
22)Bottom Pre-folding
23)Bottom Pre-Closing
24)Bottom Pre-opening
25)Bottom Ercting
26)Bottom Cardboards Placing
27)Bottom Cardboards Positioning
28)Servo Spray Angle Gluing
29)Paper Bag Bottom Pasting
30)Paper Bag Auto Collecting
