CMFB-220 is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMFB-220 accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|
| Model / product name | CMFB-220 - Roll Fed Inline Auto Paper Bag Machine With 4 Color Flexo Printing Machine Inline |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMFB-220 | Roll-fed square bottom paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Description
This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
Machine Features
1、Food bag：leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
2、Gift bag：candy ,tea wine etc.
3、Take away bag：coffee,tea bag

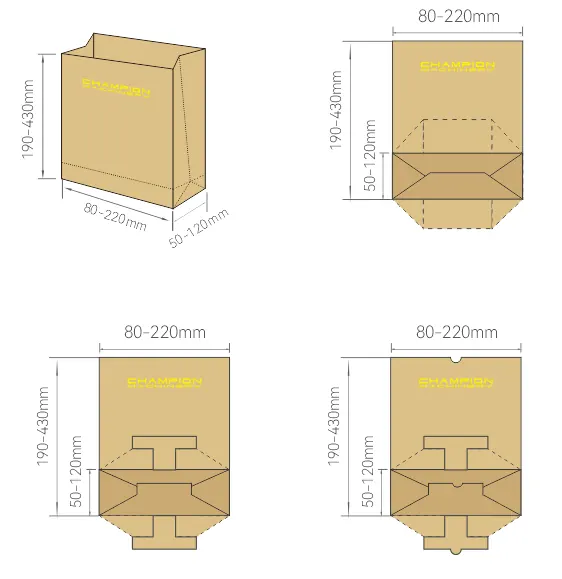

| Model | CMFB-220 |
| Paper bag part | |
| Paper bag length (Cutting length) | 190-430mm |
| Paper bag width | 80-220mm |
| Paper bag bottom width | 50-120mm |
| Paper thickness | 45-150g/m² |
| Paper roll width | 280-710mm |
| Roll paper diameter | 1300mm |
| Running speed | |
| Machine MAX Speed | 280pcs/min |
| Paper bag speed | 180-220pcs/min |
| Specification | |
| Machine Power | 380V 3 Phase 4 line 15kw |
| Machine weight | 5600kg |
| Machine Dimensions | 8600×2600×1900mm |

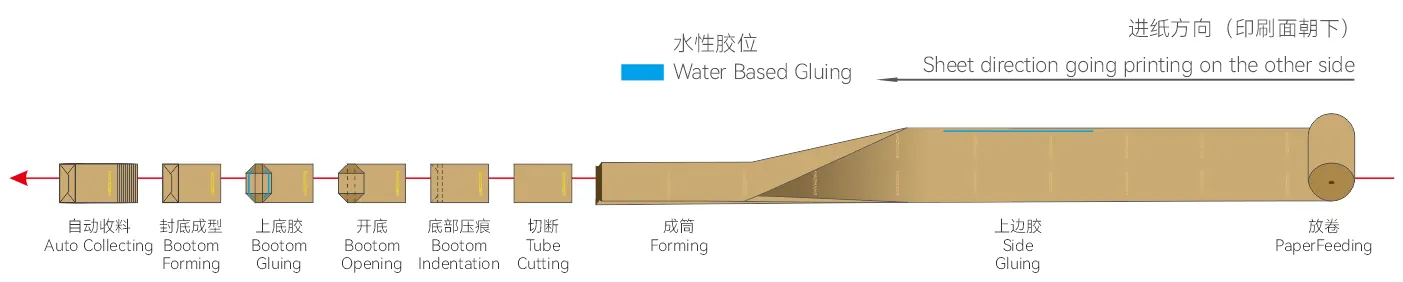

1)PaperFeeding
2)Perforation
3)Side Gluing
4)Tube Forming
5)Tube Cutting
6)Bootom Indentation
7)Bootom Opening
8)Bootom Gluing
9)Bootom Forming
10)Automatic Collection
CMFB-220: Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMFB-220: They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
