CMFB-330 is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMFB-330 accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|
| Model / product name | CMFB-330 - Square Bottom Roll-fed Paper Bag Machine (Without Handle) |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMFB-330 | Roll-fed square bottom paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Description
This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
Machine Features
1. Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control
2. Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3. Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4. The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
5. The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.
| Model | CMFB-330 |
| Paper bag part | |
| Paper roll width | 490-1050mm |
| Paper Diameter | Φ1300mm (Max) |
| Paper core diameter | Φ76mm |
| Paper weight | 80-140gsm |

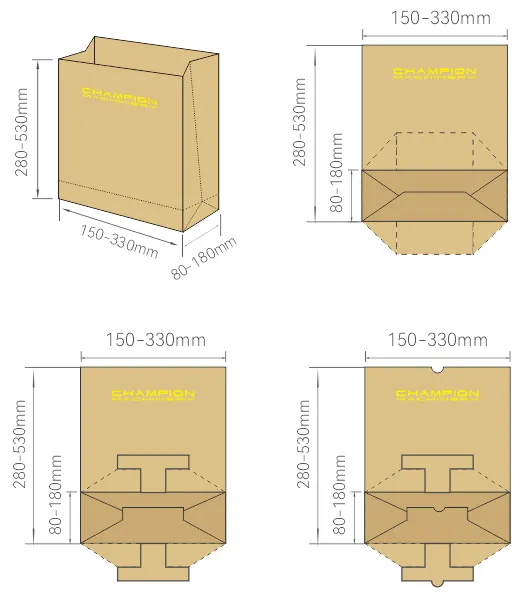

| Paper bag Width | 150-330mm |
| Paper tube Length | 280-530mm |
| Bottom width of paper bag | 80-180mm |
| Running speed | |
| Machine speed | 200pcs/min |
| Specification | |
| Total power | 11KW |
| Machine weight | 8000KGS (40HQ×1) |
| Machine Dimensions | 9500×2600×1900mm |
1)PaperFeeding
2)Perforation
3)Side Gluing
4)Tube Forming
5)Tube Cutting
6)Bootom Indentation
7)Bootom Opening
8)Bootom Gluing
9)Bootom Forming
10)Automatic Collection
CMFB-330: Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMFB-330: They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
