CMVJ-260 is a Paper bag handle making or handle pasting machine designed for shopping paper bags, carrier bags and retail kraft bags with paper handles.
To configure CMVJ-260 accurately, buyers should provide handle type, patch size, bag width, paper GSM and inline/offline production plan. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag handle making or handle pasting machine |
|---|---|
| Model / product name | CMVJ-260 - Automatic High Speed Flat Bottom Paper Bag Machine-CMVJ-260 |
| Suitable bag applications | shopping paper bags, carrier bags and retail kraft bags with paper handles |
| Main production process | paper rope making, handle patching, handle pasting and inline or offline collection |
| Buyer confirmation points | handle type, patch size, bag width, paper GSM and inline/offline production plan |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMVJ-260 | Bottom forming paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Description
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Machine Features
1. Adopt France SCHNEIDER touch screen human-computer interface, operate and control easily.
2. Adopt England TRIO PC control, Integrated with optical fiber, ensure high speed running steadily.
3. Japan YASKAWA servo motor and German SICK Photoelectric eye correction, tracking printing bag accurately.
4. Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto t ension control.
5. Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.
| Model | CMVJ-260 |
| Paper bag part | |
| Cut Bag Length (C) | 110—460mm |
| Paper Bag Width (W) | 70—250mm |
| Insert Size | 20—120mm |
| Bag Mouth Height | 15/20mm |
| Paper Thickness | 35—80g/m³ |
| Roll Paper Diameter | Φ1000mm |
| Inner Diameter Of Paper | Φ76mm |
| Paper Roll Width | 160—760mm |
| Running speed | |
| Machine Speed | 50—350pcs/min 72m/min |
| Paper Bag Speed | 50—330pcs/min |
| Specification | |
| Machine Power | 380V 3-phase 4-wire 32KW |
| Total Weight | 6500kg |
| Machine Dimension | 6500×2800×2000mm |

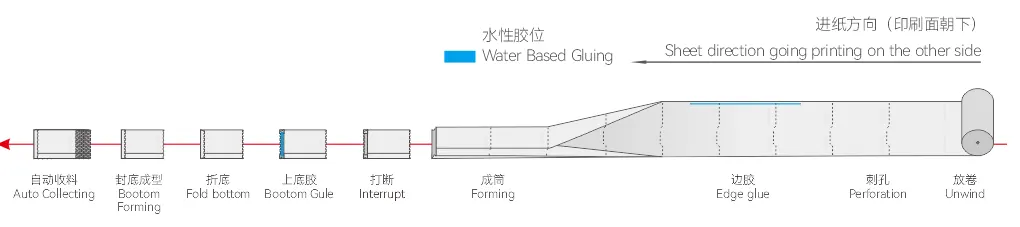

Process Flowchart
1)Unwind
2)Perforation
3)Edge glue
4)Forming
5)Interrupt
6)Bootom Gule
7)Fold bottom
8)Bootom Forming
9)Auto Collecting
CMVJ-260: Confirm twisted or flat handle type, rope diameter, handle length, paper patch size, bag width, paper GSM and whether handle pasting must be inline or offline.
CMVJ-260: They normally require different forming or pasting modules. Samples and target output are needed to determine whether change parts or separate equipment are required.
