CMBM-600WP-V-WW is a Food paper bag and V bottom paper bag making machine designed for bakery bags, bread bags, takeaway bags, food packaging bags and V bottom paper bags.
To configure CMBM-600WP-V-WW accurately, buyers should provide food bag size, paper material, bottom style, window or printing needs and target capacity. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Food paper bag and V bottom paper bag making machine |
|---|---|
| Model / product name | CMBM-600WP-V-WW - Leak-proof V Bottom Paper Bag Machine ( Non-Stop Feeding ) |
| Suitable bag applications | bakery bags, bread bags, takeaway bags, food packaging bags and V bottom paper bags |
| Main production process | roll feeding, forming, cutting, bottom folding and leak-resistant bag collection |
| Buyer confirmation points | food bag size, paper material, bottom style, window or printing needs and target capacity |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMBM-600WP-V-WW | Bottom forming paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Bag Size
Machine Description
Bag Bottom Forming Module
Blowing Bottom Opening Mechanism: Solenoid valves control the front and rear air blowing mechanisms. High-pressure air precisely opens the bag bottom, preforming a hexagonal shape for the bottom folding process.
Hot Sealing Unit: Instantaneous high-temperature lamination creates a sealed edge, ensuring water and leak resistance.
Intelligent Control System
Human-Machine Interface: A touchscreen provides centralized control, displaying real-time fault alerts and allowing fine-tuning of parameters (such as temperature and speed).
PLC + Photoelectric Detection: A photoelectric sensor coupled to a servo motor enables functions such as no-material shutdown and bag clamping detection.
Multifunctional Actuator
Clamping System: The folding and bag opening clamping plates work together to secure the bag. A vibration mechanism compacts the contents and reduces air in the bag.
Machine Features
Seamless production chain: Integrates loading, flanging, tube forming, hot-stamping and sealing, cutting, bottom opening, bottom folding, and bottom lamination, reducing manual intervention and significantly improving efficiency.
Hexagonal bottom forming: Front and rear high-pressure air blowers precisely open the bottom, creating a hexagonal structure. Combined with hot-stamping technology, this system provides physical leak prevention.
Dynamic adjustment mechanism: The folding clamping plate is equipped with a gap/height adjustment module (limiting blocks + telescopic rod) to accommodate different paper weights.
The air blow angle is adjustable (rotating rod + sprocket drive) to prevent airflow deviation and bag shape distortion.
Energy-saving design: An automatic lubrication system reduces energy consumption, and a variable-frequency motor drives the material feeding process to reduce idling losses.
Specialized for laminated paper bags: Compatible with waterproof materials such as laminated kraft paper and medical paper, the hot-stamped lamination layer enhances impermeability.
Glue-free process: Instead of traditional gluing of the sides, hot-stamping is used to form the sides, eliminating the risk of cracking.
| Model | CMBM-600WP-V-WW |
| Bag Type | V Bottom Bag |
| Reel Width | 400-760mm |
| Reel Thickness | 50-140gsm |
| Unwinding Diameter | Max. 1200mm |
| Bag Height | 200-550mm |
| Bag Width (Bottom Length) | 150-330mm |
| Gusset Size (bottom Width) | 65-160mm |
| Glue Margin Width | 20-50mm |
| Speed | Max. 85 pcs/min (Note: Related to operation, paper quality, glue) |
| Machine Size | 22000×1700×1600mm |
| Machine Weight | About 15T |
| Applicable Glue | Non-glue, Water Glue, Hotmelt Glue, PUR Glue |
| Bag Type | V Bottom Bag |
| Reel Width | 400-760mm |
| Reel Thickness | 50-140gsm |
| Unwinding Diameter | Max. 1200mm |
| Bag Height | 200-550mm |
| Bag Width (Bottom Length) | 150-330mm |
| Gusset Size (bottom Width) | 65-160mm |
| Glue Margin Width | 20-50mm |
| Speed | Max. 85 pcs/min (Note: Related to operation, paper quality, glue) |
| Machine Size | 22000×1700×1600mm |
| Machine Weight | About 15T |
| Applicable Glue | Non-glue, Water Glue, Hotmelt Glue, PUR Glue |

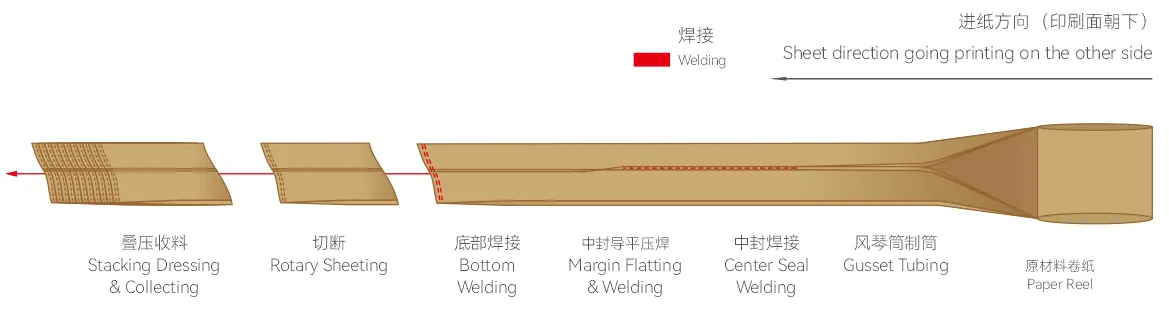

1)Paper Reel
2)Gusset Tubing
3)Center Seal Welding
4)Margin Flatting & Welding
5)Bottom Welding
6)Rotary Sheeting
7)Stacking Dressing & Collecting
CMBM-600WP-V-WW: Provide the bag dimensions, V-bottom or sharp-bottom structure, paper material and GSM, food-contact requirements, printing or window details and required production capacity.
CMBM-600WP-V-WW: Yes, when the machine format matches the required bag bottom, paper specification, printing, window and food-packaging workflow. Final suitability should be confirmed from samples.
