CMBF-420A/520A/600A + CMBS-1000RS is a Sheet fed luxury paper bag production line designed for luxury shopping bags, boutique bags, gift bags and premium packaging bags.
To configure CMBF-420A/520A/600A + CMBS-1000RS accurately, buyers should provide sheet size, top card, bottom card, ribbon or handle process and finished bag sample. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Sheet fed luxury paper bag production line |
|---|---|
| Model / product name | CMBF-420A/520A/600A + CMBS-1000RS - Paper Bag Bottom Folding + Gluing Machine With Auto Bottom Cardboard Pasting In Line |
| Suitable bag applications | luxury shopping bags, boutique bags, gift bags and premium packaging bags |
| Main production process | sheet feeding, tube forming, top card inserting, bottom card placing and precision pasting |
| Buyer confirmation points | sheet size, top card, bottom card, ribbon or handle process and finished bag sample |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMBF-420A/520A/600A + CMBS-1000RS | Two-sheet luxury paper bag production lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Bag Size
Machine Description
This equipment utilizes a semi-automatic modular line for paper bag bottom drawing and an automatic bottom Cardboard gluing machine. It combines flexibility, efficiency, and a high degree of automation in paper bag production, specifically designed to meet various bottom drawing and gluing requirements for single-sheet paper bags. This equipment demonstrates strong market adaptability with its wide range of applications, including clothing, giftware, and shopping paper bags.
Main Features
1. The machine can not only produce paper bags of different dimensions and structuresand save a lot of labors, but also accurately control the production of paper bags withhigh efficiency and high qualification rate.
2. Wider range of feeding sizes, you may win with this line, against manual job or/and yourcompetitors'machines.
3.Machine functions are designed in separate modules, and modules can be equipped freely against technical requirement.
4. The solution of this line makes the paper bag just as your perfect manual job or evenbetter. Meanwhile, bag making efficiency, precision, and production increases obviouslycost, delivery time, and managing patience are deducted hugely.
5.Anti-jamming system is designed and equipped, to protect production against jammingor continuous jamming.
| Model | CMBF-420A/520A/600A+CMBS-1000RS |

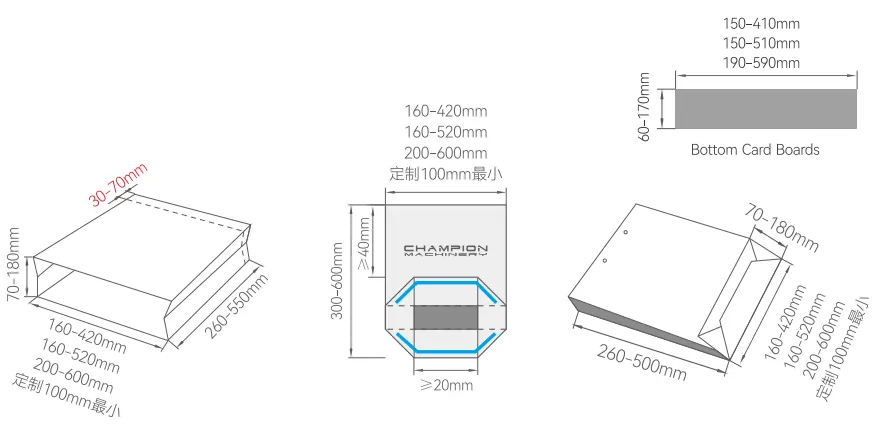

| Paper Bag Tube Width | 160-420mm(420A) 160-520mm (520A) 200-600mm (600A) |
| Paper Bag Tube Length | 260-550mm |
| Paper Bag Gusset | 70-180mm |
| Suitable Paper Material & Glue & Handle | |
| Kraft Paper | 120-350gsm |
| Coat Paper/ Laminated | 128-250gsm |
| White Board Paper | 157-300gsm |
| Grey Board Paper | 128-300gsm |
| Glue | Hot melt glue / option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, Ribbon handles with top cardboard pasting glue ǁx of luxuLj paper bag |
| Bottom Coadboads | |
| Bottom Coadboads Width | 70-170mm |
| Bottom Coadboads Length | 140-410mm(420A) 140-500mm(520A) 180-580mm(600A) |
| Bottom Cardboards Thickness | 200-500gsm |
| Running | |
| Speed | 0-70 pcs/min |
| Installation | |
| Total Power Supply | 27.5KW |
| Compressed Air/ Capacity | 6bar |
| Air Tank Capacity | 15m3/h |

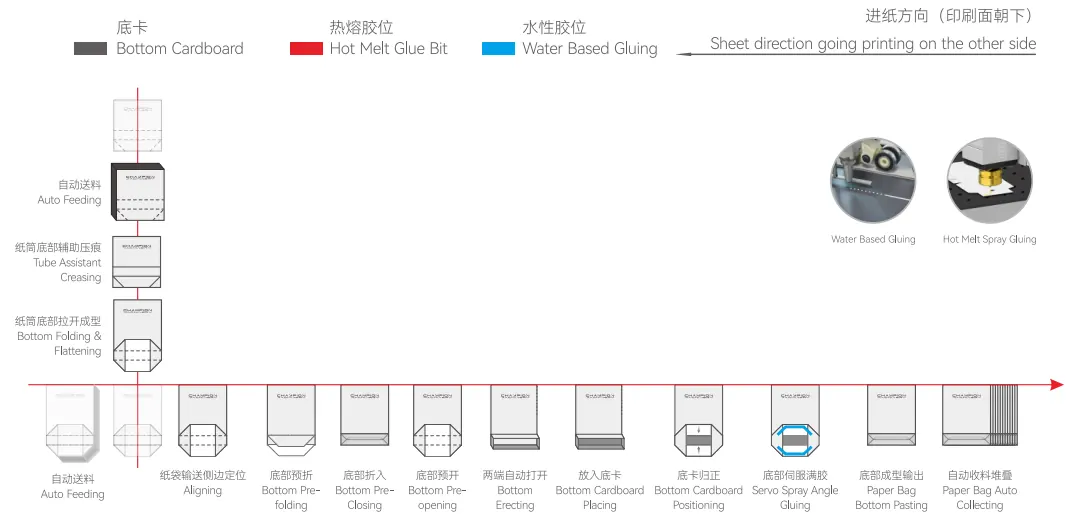

1)Auto Feeding
2)Tube Assistant Creasing
3)Bottom Folding & Flattening
4)Aligning
5)Bottom Pre-folding
6)Bottom Pre-Closing
7)Bottom Pre-opening
8)Bottom Erecting
9)Bottom Cardboard Placing
10)Bottom Cardboard Positioning
11)Servo Spray Angle Gluing
12)Paper Bag Bottom Pasting
13)Paper Bag Auto Collecting
CMBF-420A/520A/600A + CMBS-1000RS: Provide the flat sheet and finished bag dimensions, paper GSM, printing reference, top and bottom card sizes, handle or ribbon design, glue requirements and target output.
CMBF-420A/520A/600A + CMBS-1000RS: Sheet-fed production is suitable for premium printed paper, accurate registration, reinforced top cards, bottom cards and finishing processes that require controlled positioning.
