CMBF-420A/520A/600A + CMBS-600AC is a Automatic paper bag making machine designed for shopping bags, kraft paper bags, gift bags and commercial packaging bags.
To configure CMBF-420A/520A/600A + CMBS-600AC accurately, buyers should provide bag size range, paper GSM, production speed, glue system and factory layout. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Automatic paper bag making machine |
|---|---|
| Model / product name | CMBF-420A/520A/600A + CMBS-600AC - Paper Bag Bottom Folding + Gluing Machine |
| Suitable bag applications | shopping bags, kraft paper bags, gift bags and commercial packaging bags |
| Main production process | paper feeding, forming, gluing, creasing and finished bag collection |
| Buyer confirmation points | bag size range, paper GSM, production speed, glue system and factory layout |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMBF-420A/520A/600A + CMBS-600AC | Two-sheet luxury paper bag production lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Floor Plan
Machine Description
This equipment utilizes a semi-automatic modular line for paper bag bottom drawing and an automatic bottom gluing machine. It combines flexibility, efficiency, and a high degree of automation in paper bag production, specifically designed to meet various bottom drawing and gluing requirements for single-sheet paper bags. This equipment demonstrates strong market adaptability with its wide range of applications, including clothing, giftware, and shopping paper bags.
Machine Features
1. This machine can not only produce paper bags of various sizes and structures, saving a significant amount of labor, but it also allows for precise control over the bag-making process, resulting in high efficiency and an excellent pass rate.
2. With a wider range of feeding size capabilities, its main functions include bottom forming, and automatic bottom gluing — giving you a competitive edge over manual operations or rival machines.
3. The machine is designed with independent modular components, allowing for flexible assembly based on specific paper bag requirements (such as automatic bottom card insertion).
4. The paper bags produced by this production line rival, and even surpass, those made by hand in terms of craftsmanship. At the same time, bag-making efficiency, precision, and output are significantly improved, while costs, delivery times, and management overhead are greatly reduced.
5. It is designed with a paper-jam prevention system to avoid single or continuous paper jams during the production process.
| Model | CMBF-420A/520A/600A+CMBS-600AC |

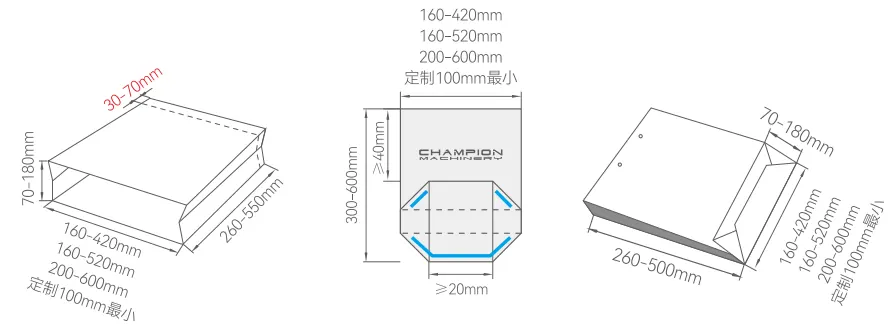

| Paper Bag Tube Size | |
| Paper Bag Tube Width | 160-420mm(420A) 160-520mm (520A) 200-600mm (600A) customized min 100mm |
| Paper Bag Tube Length | 260-550mm |
| Paper Bag Gusset | 70-180mm |
| Suitable Paper Material & Glue & Handle | |
| Kraft Paper | 120-350gsm |
| Coat Paper/ Laminated | 128-250gsm |
| White Board Paper | 157-300gsm |
| Grey Board Paper | 128-300gsm |
| Glue | Hot melt glue / option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, Ribbon handles with top cardboard pasting glue ǁx of luxuLj paper bag |
| Running | |
| Speed | 0-70 pcs/min |
| Installation | |
| Total Power Supply | 20.5KW |
| Compressed Air/ Capacity | 6bar |
| Air Tank Capacity | 15m3/h |

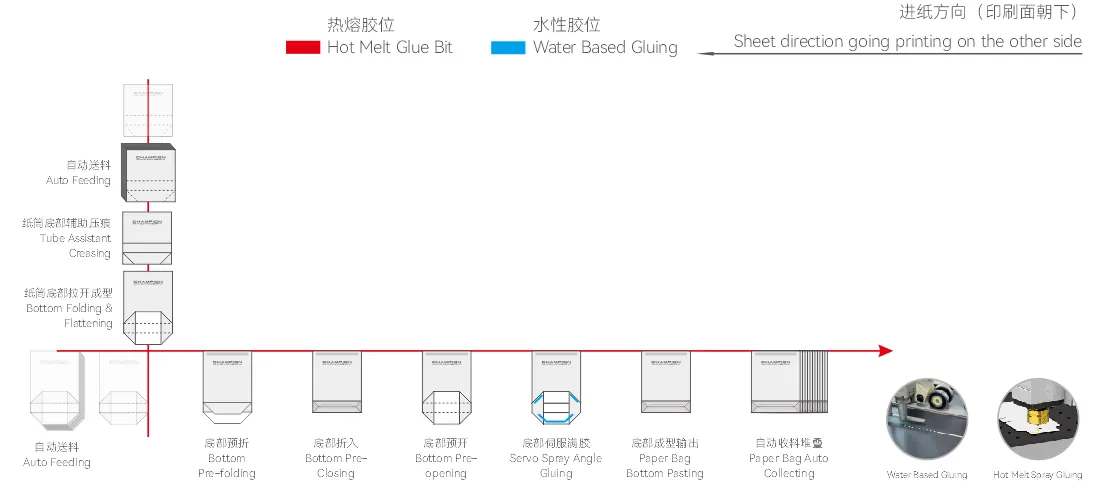

1)Auto Feeding
2)Tube Assistant Creasing
3)Bottom Folding & Flattening
4)Aligning
5)Bottom Pre-folding
6)Bottom Pre-Closing
7)Bottom Pre-opening
8)Servo Spray Angle Gluing
9)Paper Bag Bottom Pasting
10)Paper Bag Auto Collecting
CMBF-420A/520A/600A + CMBS-600AC: Send the finished bag size or drawing, paper material and GSM, required output, destination country and details of bag size range, paper GSM, production speed, glue system and factory layout.
CMBF-420A/520A/600A + CMBS-600AC: The planned workflow covers paper feeding, forming, gluing, creasing and finished bag collection. The final configuration depends on the finished bag structure and which processes must run inline.
