CMBS-600AC is a Food paper bag and V bottom paper bag making machine designed for bakery bags, bread bags, takeaway bags, food packaging bags and V bottom paper bags.
To configure CMBS-600AC accurately, buyers should provide food bag size, paper material, bottom style, window or printing needs and target capacity. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Food paper bag and V bottom paper bag making machine |
|---|---|
| Model / product name | CMBS-600AC - Paper Bag Bottom Gluing Machine |
| Suitable bag applications | bakery bags, bread bags, takeaway bags, food packaging bags and V bottom paper bags |
| Main production process | roll feeding, forming, cutting, bottom folding and leak-resistant bag collection |
| Buyer confirmation points | food bag size, paper material, bottom style, window or printing needs and target capacity |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMBS-600AC | Two-sheet luxury paper bag production lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Description

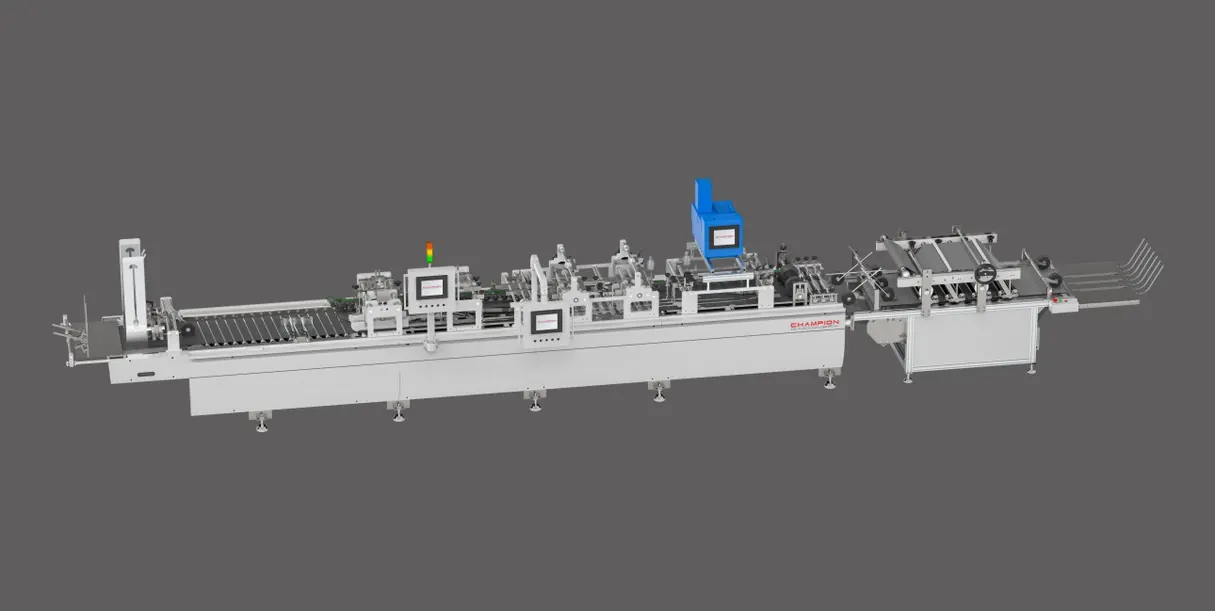

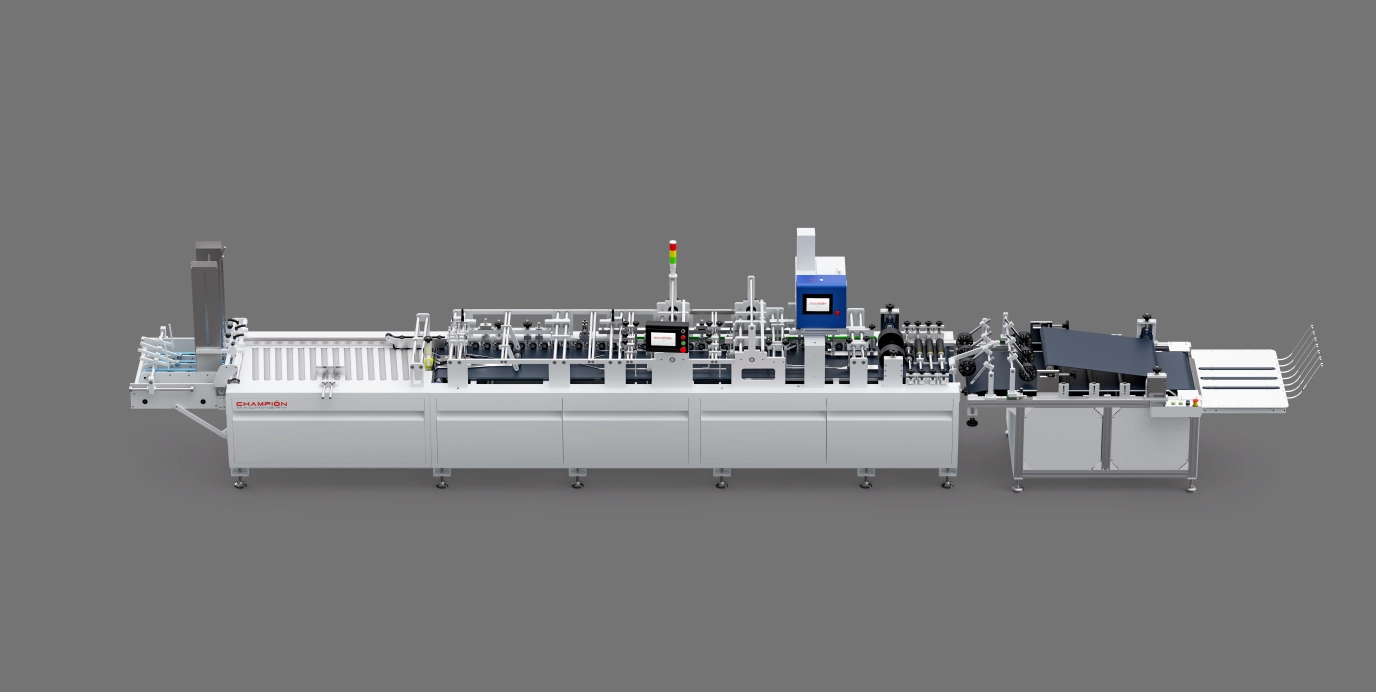

The automatic bottom card gluing machine is an intelligent device specifically designed for gluing paper bottoms to paper bags. It automatically conveys the bottom card, precisely sprays glue, and presses and cures the bottoms. It is primarily used for high-end gift bags, e-commerce tote bags, and food packaging bags. It is suitable for reinforcing the bottoms of kraft paper, coated paper, and non-woven fabrics.
By utilizing high-speed, high-precision production processes and an intelligent control system, it reduces costs, improves efficiency, and optimizes quality. Its modular design allows for flexible adaptation to diverse production needs. Its environmentally friendly features align with current trends in green production, making it a leading upgrade option for traditional paper bag production equipment.
Machine Features
Efficient Automated Production: The continuous working mode integrates the entire process of bag feeding, automatic bottom card insertion, glue spraying, and pressing, significantly improving efficiency and reducing manual dependence; the touch screen control + PLC programming system enables one-click parameter adjustment.
Precise Control and Stability: Fiber optic sensors monitor glue volume and position in real time, with an accuracy of ≤±200g.
Flexible Adaptability: Exchanging molds allows for adaption to various bag shapes (such as square bottoms, pointed bottoms, and valve bags).
Supports a variety of materials: kraft paper, coated paper, paper-yarn composite bags, and more.
Environmentally friendly and low-energy design: Biodegradable hot-melt adhesive reduces pollution; energy-saving components (such as a variable-frequency motor) reduce energy consumption, reducing glue consumption by 30% compared to traditional manual primer application.
Smart maintenance and durability: The modular structure facilitates replacement of key components, and the self-diagnosis system provides real-time warning of electrical faults (such as motor overheating and glue line blockage).
| Model | CMBS-600AC |

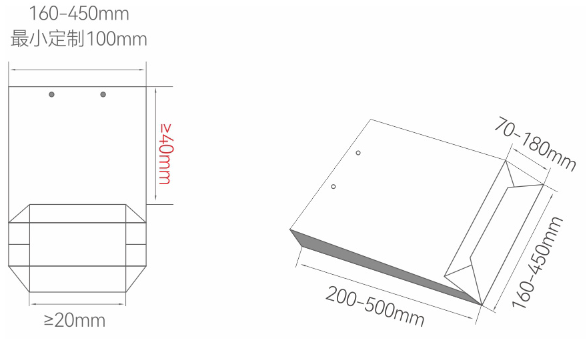

| Paper Bag Tube Size | |
| Paper Bag Tube Width | 160-450mm (Customized Min 100mm) |
| Paper Bag Tube Length | 200-500mm |
| Paper Bag Gusset | 70-180mm |
| Suitable Paper Material & Glue & Handle | |
| Kraft Paper | 120-350gsm |
| Coat Paper / Laminated | 128-250gsm |
| White Board Paper | 157-300gsm |
| Grey Board Paper | 128-300gsm |
| Glue | Hot melt glue option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, ribbon handles with top cardboard pasting glue fix of luxury paper bag |
| Running | |
| Speed | 0-80 pcs/min |
| Voltage | 380V/220V 50/60HZ 3 phase |
| Production Power | 5-6KW |

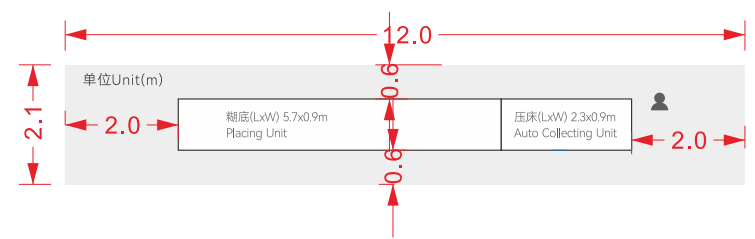

| Installation | |
| Total Power Supply | 14.5KW |
| Compressed Air / Capacity | 6bar |
| Air Tank Capacity | 15m³/h |

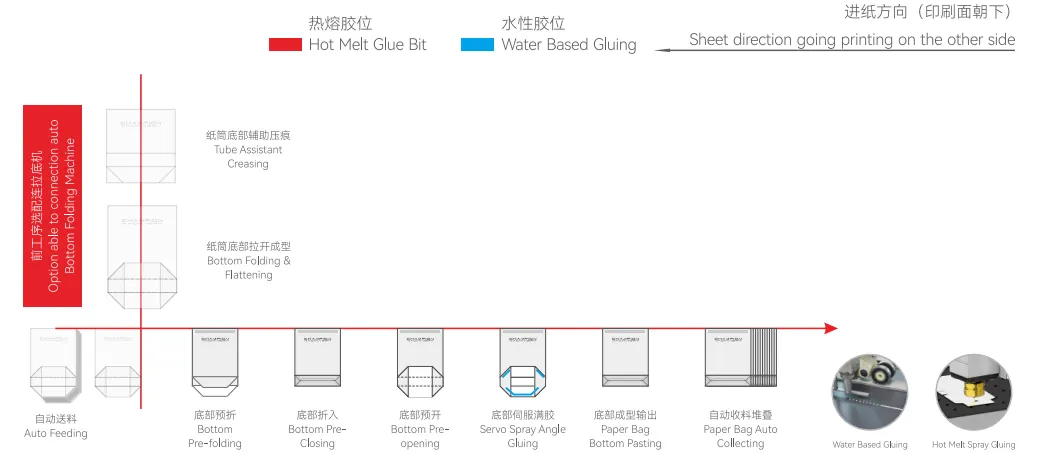

1)Auto Feeding
2)Bottom Pre-folding
3)Bottom Pre-Closing
4)Bottom Pre-opening
5)Servo Spray Angle Gluing
6)Paper Bag Bottom Pasting
7)Paper Bag Auto Collecting
CMBS-600AC: Provide the bag dimensions, V-bottom or sharp-bottom structure, paper material and GSM, food-contact requirements, printing or window details and required production capacity.
CMBS-600AC: Yes, when the machine format matches the required bag bottom, paper specification, printing, window and food-packaging workflow. Final suitability should be confirmed from samples.
