CMTF-1100 is a Sheet fed luxury paper bag production line designed for luxury shopping bags, boutique bags, gift bags and premium packaging bags.
To configure CMTF-1100 accurately, buyers should provide sheet size, top card, bottom card, ribbon or handle process and finished bag sample. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Sheet fed luxury paper bag production line |
|---|---|
| Model / product name | CMTF-1100 - Paper Bag Tube Forming (Hot Selling) |
| Suitable bag applications | luxury shopping bags, boutique bags, gift bags and premium packaging bags |
| Main production process | sheet feeding, tube forming, top card inserting, bottom card placing and precision pasting |
| Buyer confirmation points | sheet size, top card, bottom card, ribbon or handle process and finished bag sample |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CMTF-1100 | Sheet-fed automatic luxury paper bag machineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.
Machine Floor Plan
Machine Description
The paper bag tube gluing machine is a core piece of equipment in paper bag production. It automatically glues single sheets of creased cardboard into a tube-shaped structure, providing a prefabricated tube for the subsequent gluing process. Its workflow primarily includes automatic paper feeding, positioning and calibration, gluing and gluing, accordion folding, and pressing and forming.
It is primarily used to produce tubes for paper containers such as garment bags, shopping bags, gift bags, and food packaging bags. It is compatible with a variety of materials, including kraft paper, coated paper, and laminated paper.
Machine Features
Efficient and Continuous Production: A fully automatic paper feeding system with variable frequency speed control achieves a high-speed output of 70-100 paper tubes per minute. Integrated tube gluing, accordion folding, and laminating lines reduce manual intervention.
Precise Positioning Control: A photoelectric sensor plus side/pull gauge system ensures paper alignment accuracy ≤±0.5mm. A servo motor drive coupled with PLC programming allows one-touch adjustment of parameters such as accordion fold depth and laminating force.
Flexible Adaptability: Suitable for a wide range of weights (150-350g), including special materials such as coated paper and paper-yarn composites.
Intelligent Glue Control System: Available with either cold glue roller coating or hot melt glue spraying technology, glue quantity is independently controlled to prevent overflow. Select models feature a glue path self-diagnosis function, providing real-time warning of blockages and faults.
Durable and Maintenance-Friendly Design: Key components are constructed of wear-resistant materials for extended service life.

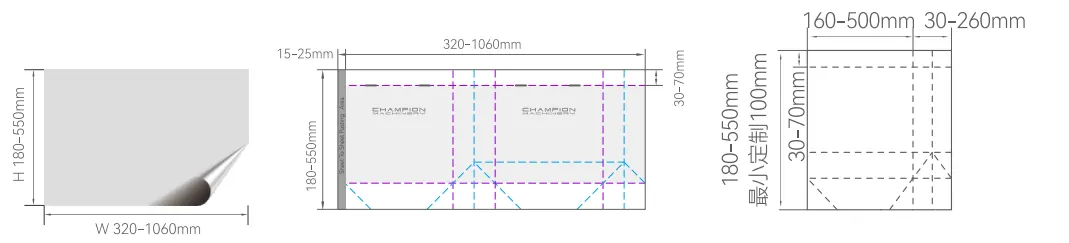

| Model | CMTF-1100 |
| Sheet Paper Size | |
| Sheet Paper Width | 320-1060mm |
| Sheet Paper Length | 180-550mm |
| Paper Bag Tube Size | |
| Paper Bag Top Folder Depth | 30-70mm |
| Paper Bag Tube Width | 160-500mm customized min 100mm |
| Paper Bag Tube Length | 180-550mm |
| Paper Bag Gusset | 30-260mm |
| Sheet Paper Glue Side | 15-25mm |
| Suitable Paper Material & Glue & Handle | |
| Kraft Paper | 120-350gsm |
| Coat Paper/ Laminated | 128-250gsm |
| White Board Paper | 157-300gsm |
| Grey Board Paper | 128-300gsm |
| Glue | Hot melt glue / option water base glue |
| Handle | Flat paper handle, twisted paper handle, tipping with rope or ribbon handle, Ribbon handles with top cardboard pasting glue ǁx of luxuLj paper bag |
| Running | |
| Speed | 0-100 pcs/min |
| Voltage | 380V/220V 50/60HZ 3 phase |
| Production Power | 5-6KW |
| Machine Size & Weight | |
| Size | 10×1.8×1.6M |
| Weight | 1400kg |
| Installation | |
| Total Power Supply | 16.5KW |
| Compressed Air/ Capacity | 6bar |
| Air Tank Capacity | 15m3/h |

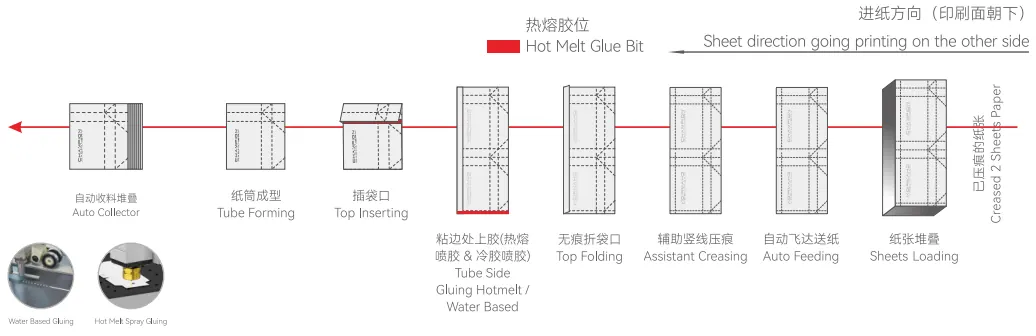

1)Sheets Loading
2)Auto Feeding
3)Assistant Creasing
4)Top Folding
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Auto Collector
CMTF-1100: Provide the flat sheet and finished bag dimensions, paper GSM, printing reference, top and bottom card sizes, handle or ribbon design, glue requirements and target output.
CMTF-1100: Sheet-fed production is suitable for premium printed paper, accurate registration, reinforced top cards, bottom cards and finishing processes that require controlled positioning.
