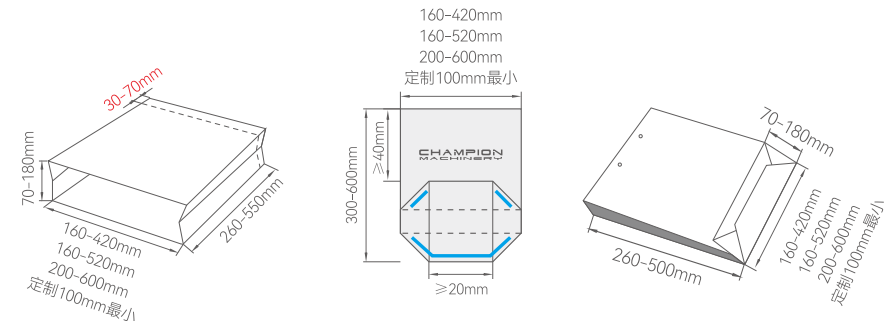

Bag Size

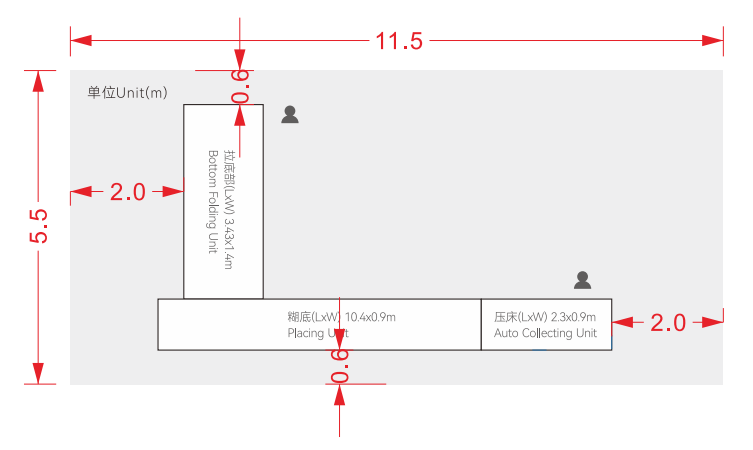

Machine Floor Plan

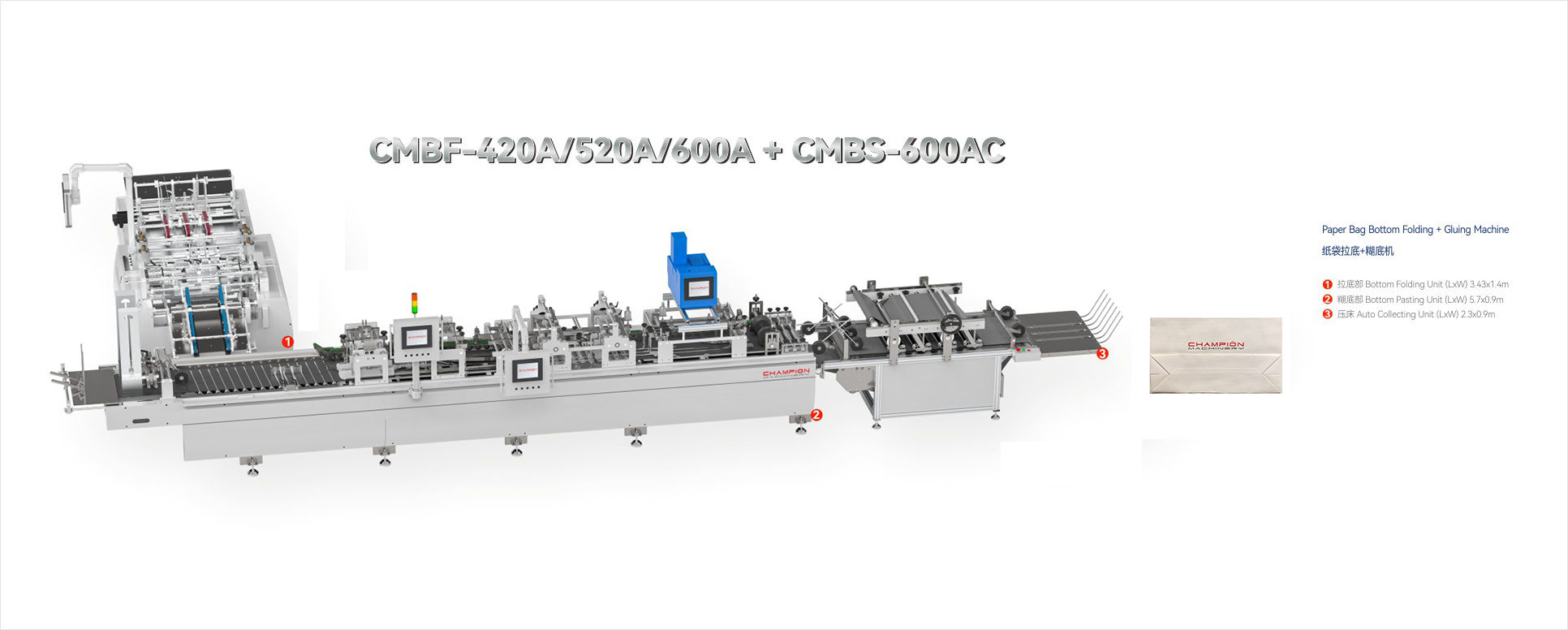

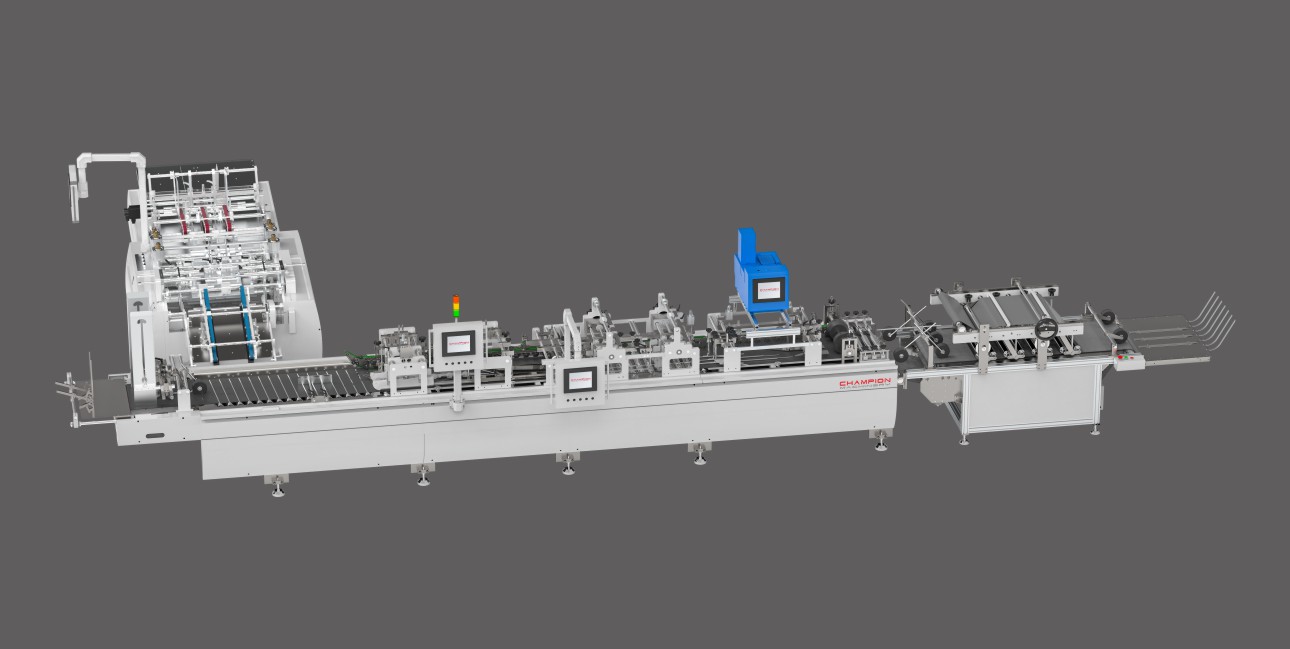

Machine Description

This equipment utilizes a semi-automatic modular line for paper bag bottom drawing and an automatic bottom gluing machine. It combines flexibility, efficiency, and a high degree of automation in paper bag production, specifically designed to meet various bottom drawing and gluing requirements for single-sheet paper bags. This equipment demonstrates strong market adaptability with its wide range of applications, including clothing, giftware, and shopping paper bags.

Machine Features

1.  This machine can not only produce paper bags of various sizes and structures, saving a significant amount of labor, but it also allows for precise control over the bag-making process, resulting in high efficiency and an excellent pass rate.
2.  With a wider range of feeding size capabilities, its main functions include bottom forming, and automatic bottom gluing — giving you a competitive edge over manual operations or rival machines.
3.  The machine is designed with independent modular components, allowing for flexible assembly based on specific paper bag requirements (such as automatic bottom card insertion).
4.  The paper bags produced by this production line rival, and even surpass, those made by hand in terms of craftsmanship. At the same time, bag-making efficiency, precision, and output are significantly improved, while costs, delivery times, and management overhead are greatly reduced.
5.  It is designed with a paper-jam prevention system to avoid single or continuous paper jams during the production process.

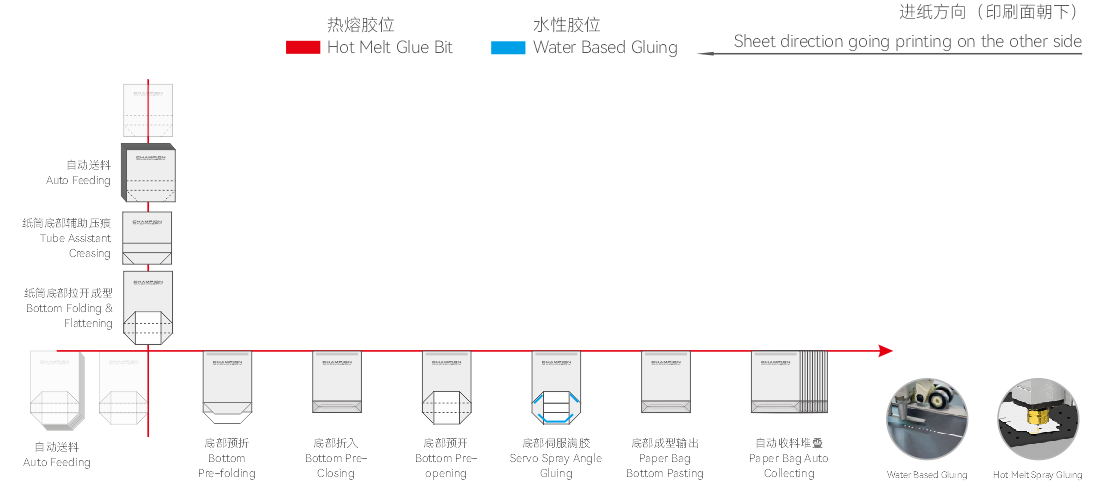

1)Auto Feeding
2)Tube Assistant Creasing
3)Bottom Folding & Flattening
4)Aligning
5)Bottom Pre-folding
6)Bottom Pre-Closing
7)Bottom Pre-opening
8)Servo Spray Angle Gluing
9)Paper Bag Bottom Pasting
10)Paper Bag Auto Collecting
