CHAMPION | Automatic Paper Bag Machine Manufacturer & Supplier

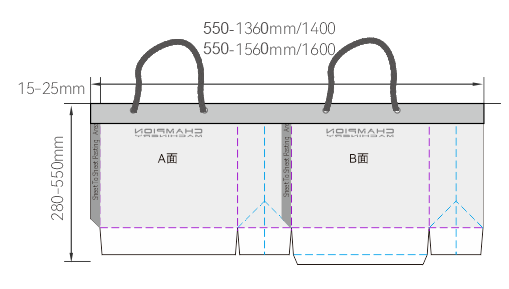

Paper Size

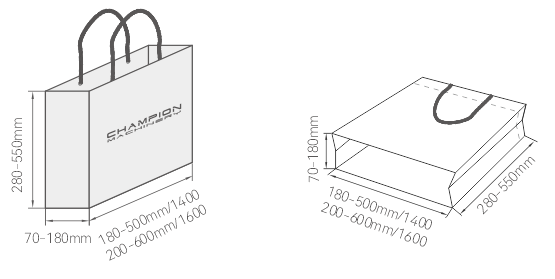

Bag Size

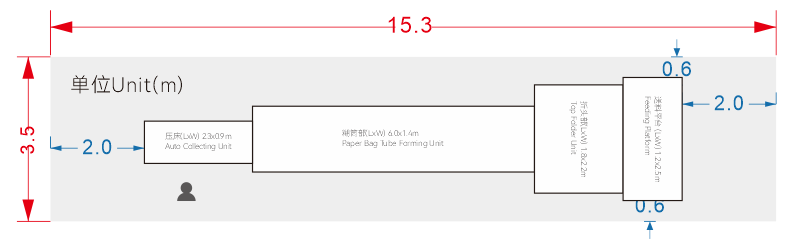

Machine Floor Plan

Machine Description

1.  The equipment uses manual paper feeding, offering flexibility and convenience.
2.  The intelligent control system supports variable frequency speed regulation and automatic counting, ensuring high accuracy.
3.  It is compatible with various materials such as kraft paper, white cardboard, and paper-yarn composite bags.
4.  It utilizes a dual-use water-based and hot-glue system, replacing traditional yellow glue to reduce VOC emissions.
5.  This equipment is ideal for achieving cost reduction, efficiency improvement, and quality upgrades in luxury packaging, boutique retail, and other sectors.

Machine Features

1.  Forming Technology: Utilizing proprietary forming technology, this equipment ensures precise paper bag dimensions and excellent shaping.
2.  Efficient Automation: This equipment is specifically designed for semi-automatic paper bag tube forming with pre-inserted ribbons or handles. It requires manual feeding of materials, after which the tube-forming process—including automatic tube forming, and pleating—is completed in a single pass. This design addresses the issues of inconsistent quality and low efficiency in manual tube forming.
3.  Intelligent Control: The main control circuit utilizes an imported single-chip microcomputer, a human-machine interface, and variable frequency control. Parameter setting is quick and easy, and operation is centralized and intuitive, achieving fully user-friendly, fully automatic operation. Digital fault self-diagnosis provides clear fault diagnosis at a glance, facilitating quick and easy maintenance and adjustments.
4.  Reduced Labor Costs: With a high degree of automation, the entire production process can be completed by only one person, eliminating 3-5 labor costs and intermediate handling steps. Easy to learn, it saves labor costs and offers a more user-friendly experience.
5.  Durability and Easy Maintenance: The dual-frequency design features a simple mechanical structure, minimal wear, easy maintenance, and a long service life.
6.  Key Components: The entire machine utilizes renowned brand components such as the German Rexroth dual-servo control system, Siemens PLC, and frequency converter, ensuring stable performance, high efficiency, and durability.
7.  Environmentally Friendly Materials: The bonding process primarily utilizes environmentally friendly water-based and hot-melt adhesives, meeting food packaging safety standards. The machine structure is easy to clean and maintain, reducing waste generation.
8.  Material Compatibility: Supports a variety of paper materials (120-350g/m2), including kraft paper, white cardboard, and coated paper.

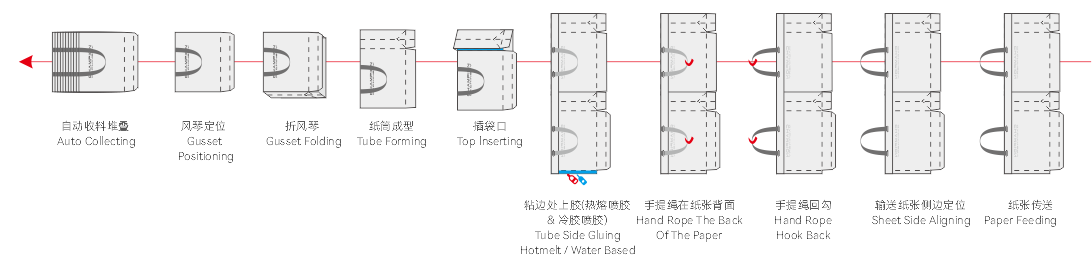

1)Paper Feeding
2)Sheet Side Aligning
3)Hand Rope Hook Back
4)Hand Rope The Back Of The Paper
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Gusset Folding
9)Gusset Positioning
10)Auto Collecting
