CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker is a Paper bag ribbon insertion and rope threading machine designed for luxury paper bags, gift bags and shopping bags with ribbon or rope threading.
To configure CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker accurately, buyers should provide bag hole distance, ribbon material, rope diameter, threading style and target output. CHAMPION reviews these inputs against the finished bag sample before confirming the machine layout.
| Machine category | Paper bag ribbon insertion and rope threading machine |
|---|---|
| Model / product name | CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker - Two Sheet Paper Pasting With4pcs Top Cards + Ribbon Insert In |
| Suitable bag applications | luxury paper bags, gift bags and shopping bags with ribbon or rope threading |
| Main production process | bag positioning, hole alignment, ribbon or rope feeding, threading and collection |
| Buyer confirmation points | bag hole distance, ribbon material, rope diameter, threading style and target output |
Enter the finished luxury paper bag dimensions to calculate the required flat paper size and check whether the selected machine range is suitable.
CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker | Ribbon threading / top card luxury bag lineThis calculator is for early project screening. Final machine selection should also confirm paper GSM, handle type, bottom structure, glue method, printing process and target production speed.

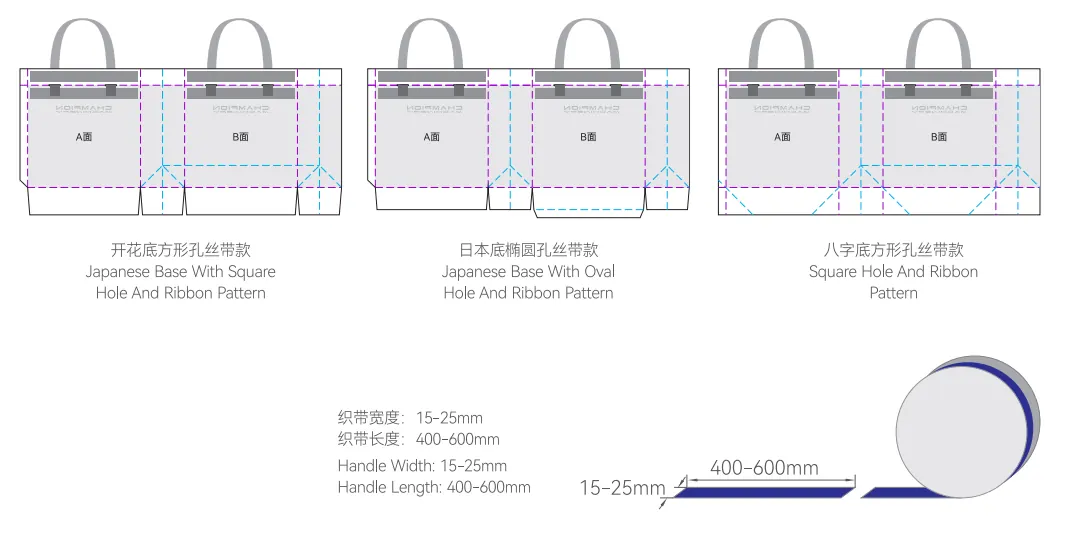

Ribbon Paper Bag Style
Bag Head Punching Style
Paper Size

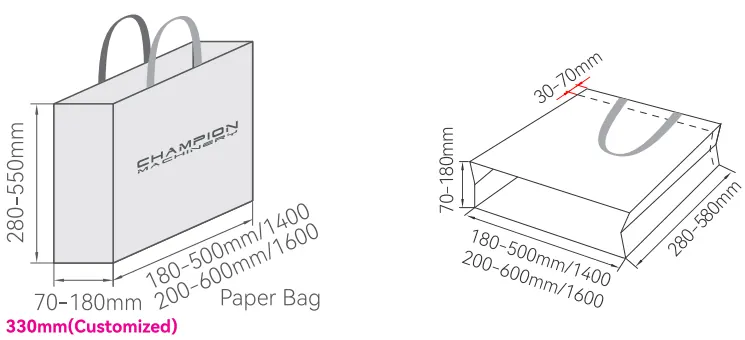

Bag Size

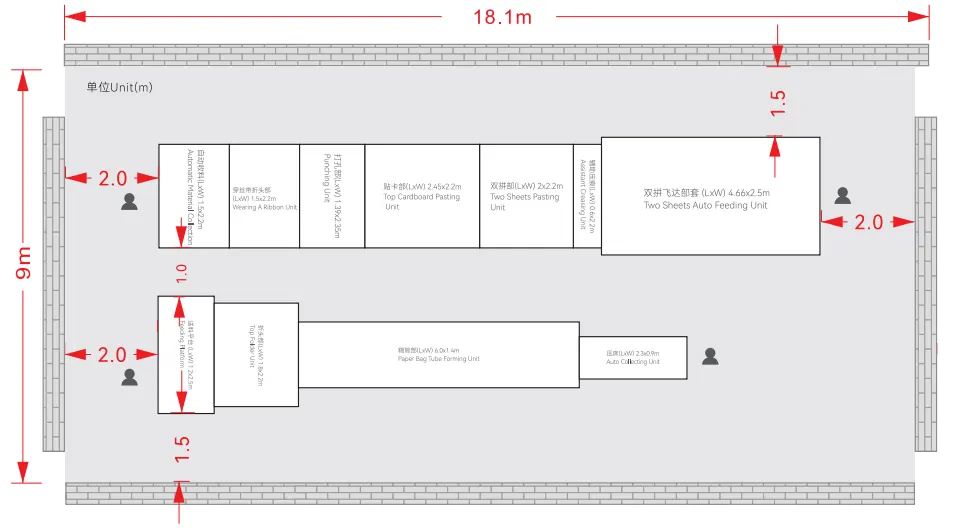

Machine Floor Plan
Machine Description
To address the inefficiencies and high quality fluctuations associated with manual ribbon threading, we have developed a newly developed double-joint-head card threading and folding machine. This machine integrates three core technological advantages: fully automated intelligent control, multi-functional integration, and millimeter-level high-precision lamination. This creates a comprehensive intelligent production system, encompassing everything from raw material processing to finished product output.
This machine significantly improves production efficiency compared to traditional processes. Its automatic positioning system and adaptive tension control technology maintain a stable product yield of over 95%. Its modular design allows for rapid switching between different paper bag sizes, perfectly meeting the personalized customization needs of luxury packaging and high-end retail. This can help businesses reduce costs and increase efficiency, enabling a leap from "manufacturing" to "intelligent manufacturing."
1. The equipment uses manual paper feeding, offering flexibility and convenience.
2. The intelligent control system supports variable frequency speed regulation and automatic counting, ensuring high accuracy.
3. It is compatible with various materials such as kraft paper, white cardboard, and paper-yarn composite bags.
4. It utilizes a dual-use water-based and hot-glue system, replacing traditional yellow glue to reduce VOC emissions.
5. This equipment is ideal for achieving cost reduction, efficiency improvement, and quality upgrades in luxury packaging, boutique retail, and other sectors.
| Model | CM2SP-1400TCR+Manul Feeder 1400 Tube Maker | CM2SP-1600TCR+Manul Feeder 1600 Tube Maker |
| Sheet Paper Size | ||
| Sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Two Sheet Paper Size | ||
| Before pasting Sheet Paper Width 1 | 400-680mm | 400-780mm |
| Before pasting Sheet Paper Width 2 | 400-680mm | 400-780mm |
| After pasted W1+W2 sheet Paper Width | 550-1360mm | 550-1560mm |
| Sheet Paper Length | 300-580mm | 300-580mm |
| Paper Bag Tube Size | ||
| Paper Bag Top Folder Depth | 30-70mm | 30-70mm |
| Paper Bag Tube Width | 160-500mm | 200-600mm |
| Paper Bag Tube Length | 270-550mm | 270-550mm |
| Paper Bag Gusset | 70-180mm (Customized: 300mm) | 70-180mm (Customized: 300mm) |
| Sheet Paper Glue Side | 15-25mm | 15-25mm |
| Suitable Paper Material & Glue & Handle | ||
| Kraft Paper | 120-350gsm | 120-350gsm |
| Coat Paper / Laminated | 157-250gsm | 157-250gsm |
| White Board Paper | 157-300gsm | 157-300gsm |
| Grey Board Paper | 157-300gsm | 157-300gsm |
| Glue | Hot melt glue (option: water base glue) | Hot melt glue (option: water base glue) |
| Handle | Flat paper handle, twisted paper handle, tipping with rope/ribbon handle, ribbon handles (top cardboard pasting fix for luxury bags) | Flat paper handle, twisted paper handle, tipping with rope/ribbon handle, ribbon handles (top cardboard pasting fix for luxury bags) |
| Top Cardboards | ||
| Top Cardboards Width | 25-65mm | 25-65mm |
| Top Cardboards Length | 140-500mm | 180-580mm |
| Top Cardboards Thickness | 200-400gsm 4pcs | 200-600gsm 2pcs |
| Running | ||
| Speed | 0-30 pcs/min | 0-30 pcs/min |
| Installation | ||
| Total Power Supply | 41KW | 41KW |
| Compressed Air / Capacity | 6bar | 6bar |
| Air Tank Capacity | 15m³/h | 15m³/h |

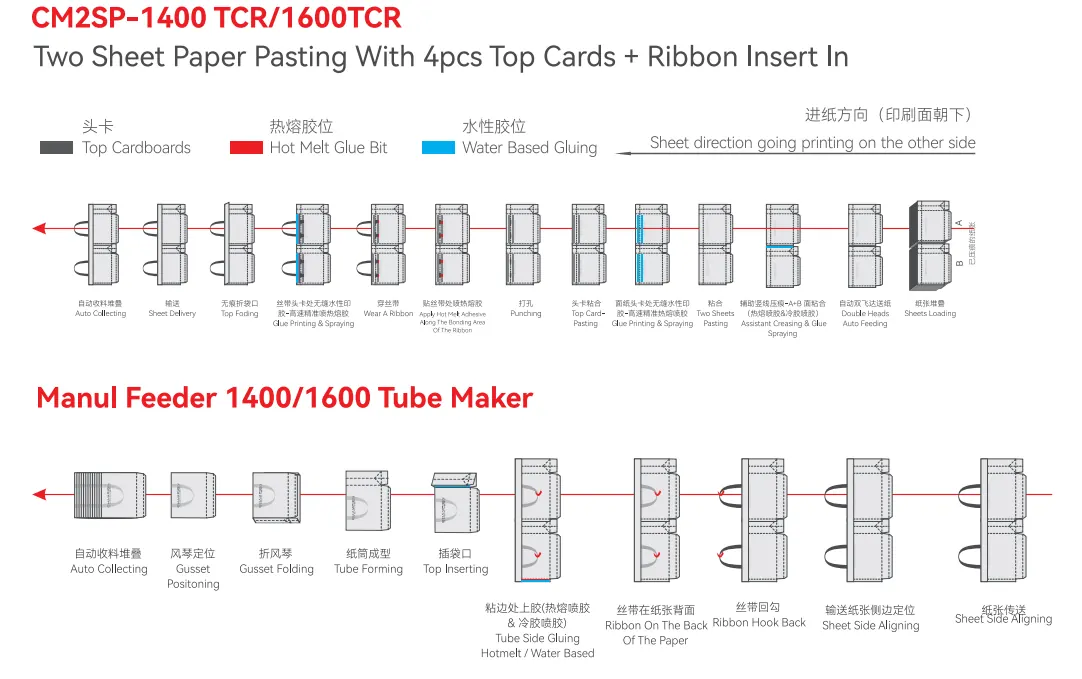

Sheet Paper Pasting With 4pcs Top Cards + Ribbon Insert In
1)Sheets Loading
2)Double Heads Auto Feeding
3)Assistant Creasing & Glue Spraying
4)Two Sheets Pasting
5)Glue Printing & Spraying
6)Top Card-Pasting
7)Punching
8)Apply Hot Melt Adhesive Along The Bonding Area Of The Ribbon
9)Wear A Ribbon
10)Glue Printing & Spraying
11)Top Foding
12)Sheet Delivery
13)Auto Collecting
Manul Feeder 1400/1600 Tube Maker
1)Sheet Side Aligning
2)Sheet Side Aligning
3)Ribbon Hook Back
4)Ribbon On The Back Of The Paper
5)Tube Side Gluing Hotmelt / Water Based
6)Top Inserting
7)Tube Forming
8)Gusset Folding
9)Gusset Positoning
10)Auto Collecting
CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker: Send the bag width and height, hole diameter and spacing, ribbon or rope material, diameter or width, threading pattern and required hourly output.
CM2SP-1400TCR/1600TCR+ Manul Feeder 1400/1600 Tube Maker: It depends on material stiffness, diameter, end shape and threading pattern. CHAMPION should test representative samples before confirming a multi-material configuration.
